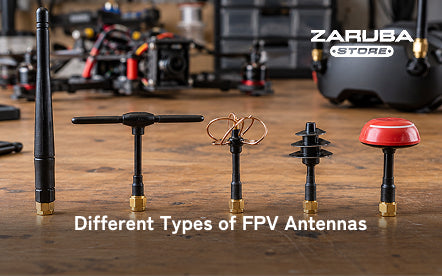

What are the different types of FPV antennas?
Choosing the right antenna can make a noticeable difference to FPV video quality, signal reliability, range, and overall flying experience. With so many designs available, understanding the main FPV antenna types makes it easier to choose equipment that matches your drone, frequency, and flying style.
The best antenna is not necessarily the one with the highest advertised gain. Different FPV antenna types are designed for different purposes, including racing, freestyle, cinematic flying, and long-range flights. Factors such as polarization, radiation pattern, frequency, connector type, and physical size all affect how an antenna performs.
Types of FPV antennas
Let’s review the best FPV antennas.
Linear and circular polarized antennas
One of the most important differences between FPV antenna types is polarization. FPV antennas are generally divided into two broad categories: linear and circular polarization.
Linear antennas transmit and receive radio waves along a specific plane. They are relatively simple, lightweight, and inexpensive. However, their performance can deteriorate when the transmitting and receiving antennas become misaligned.
Circularly polarized antennas maintain a reliable connection as the drone changes orientation, making them popular for freestyle and other dynamic FPV flying. They can provide more consistent video reception during rolls, dives, and rapid direction changes.
Omnidirectional antennas
Omnidirectional antennas are among the most common FPV antenna types. As the name suggests, they radiate signals around the antenna rather than concentrating them in one direction.
These antennas are practical for general FPV flying because they provide broad coverage without needing to be pointed directly at the drone. They are commonly used on FPV goggles, video receivers, and drones, although placement and orientation still affect performance.
Directional antennas
Directional antennas concentrate more of their signal in a particular direction. They are another important category of FPV antenna types and are particularly useful when you need greater range or stronger reception in a specific direction.
Because their radiation pattern is focused, directional antennas generally need to be aimed toward the drone. This can make them less convenient for freestyle flying but useful for long-range flights or situations where the aircraft remains within a relatively predictable area.
Common directional designs include patch antennas and other high-gain antenna configurations. They can also be combined with an omnidirectional antenna on FPV goggles or a ground station.
Patch antennas
Patch antennas are a popular example of directional FPV antenna types. They use a relatively flat design and focus radio energy toward the front of the antenna.
Their directional characteristics can help improve reception at greater distances when the antenna is correctly aimed. For this reason, patch antennas are frequently considered for long-range FPV setups.
However, a patch antenna is not automatically better than an omnidirectional antenna. If the drone flies behind the pilot or moves outside the antenna's primary coverage area, reception can become weaker.
Dipole antennas
Dipole antennas are simple, lightweight designs that appear in many FPV systems. Their straightforward construction makes them practical for compact drones and basic radio or video applications.
As with other FPV antenna types, performance depends on the specific frequency and design. A dipole antenna intended for one frequency range should not simply be substituted for an antenna designed for another.
Their low weight and relatively simple construction can make dipoles a useful option when keeping an aircraft compact is a priority.
Stubby antennas
Stubby antennas are short antennas designed to reduce the amount of equipment extending from the drone or goggles. They are among the more compact FPV antenna types and can be useful when space is limited. Their small size can be particularly convenient on racing drones, where antennas may be exposed to impacts.
However, the shortest antenna is not necessarily the best choice. Placement, frequency compatibility, polarization, and the antenna's design all influence actual performance. Pilots should therefore consider the entire FPV system rather than selecting an antenna based only on physical size.
Antenna frequency matters
Frequency compatibility is one of the most important considerations when comparing FPV antenna types. An antenna designed for 5.8 GHz should generally be matched with equipment operating in the appropriate frequency range.
FPV systems commonly use different frequency bands depending on the video or radio system. Using an unsuitable antenna can reduce efficiency and potentially affect system performance.
Before buying an antenna, check the operating frequency specified by the manufacturer. This is more important than choosing an antenna simply because it has a particular shape or appearance.
Antenna connectors and mounting
Another practical difference between FPV antenna types is the connector and mounting configuration. Common connectors include SMA and RP-SMA, while smaller FPV equipment may use other compact connector designs.
The connector on the antenna must match the connector on the relevant FPV component, or an appropriate adapter may be required. Pilots should also check whether an antenna uses a straight, angled, or flexible mounting arrangement.
Correct installation is essential. An antenna that is compatible on paper may still perform poorly if it is blocked by the frame, positioned incorrectly, or exposed to excessive vibration or impact.
How to choose the right FPV antenna
When comparing FPV antenna types, start with your FPV system and flying style.
For general flying, an omnidirectional antenna can offer convenient coverage. Freestyle pilots may benefit from circularly polarized designs that maintain reception as the drone changes orientation. Long-range pilots may consider combining an omnidirectional antenna with a directional antenna to balance coverage and focused reception.
Racing pilots often prioritize compactness, durability, and low weight. Cinematic pilots may place greater emphasis on stable video reception and reliable performance.
You should also verify frequency, polarization, connector compatibility, dimensions, and mounting position before purchasing.
If you are buying a complete setup, remember that antennas are only one part of the overall system. You can learn more about what is included in an FPV bundle when comparing complete FPV packages.
Why antenna placement matters
Even the best FPV antenna types cannot compensate for poor placement. Carbon-fiber frames, batteries, electronics, and other components can affect signal propagation.
Try to position antennas according to the manufacturer's recommendations and keep them away from potential sources of interference where possible. On a drone, antennas should also be protected from propellers, ground impacts, and other obstacles.
The goal is to maintain a clear and consistent antenna orientation throughout the flight.
Understanding FPV Antenna Types
There is no single best option for every FPV pilot. The most suitable FPV antenna types depend on the aircraft, frequency, receiver, transmitter, environment, and intended range.
Understanding the differences between linear, circular, omnidirectional, directional, patch, dipole, and stubby antennas gives you a useful starting point. From there, focus on compatibility and real-world requirements rather than relying on specifications such as gain alone.
The FPV antenna types you choose should ultimately complement the rest of your FPV system. A properly matched and correctly positioned antenna can help you get more consistent performance from your equipment.
FAQ
Do more expensive FPV antennas work better?
Not necessarily. Price alone does not determine antenna performance. The right antenna for your system, frequency, flying environment, and application can be more useful than a more expensive option that is poorly matched to your equipment.
How many antennas does an FPV drone need?
The number depends on the video transmitter, radio system, receiver, and antenna configuration. Some systems use a single antenna, while others use multiple antennas for improved reliability or diversity.
How should I position an FPV antenna?
Follow the antenna manufacturer's installation recommendations and keep the antenna clear of propellers and major obstructions. Proper positioning can be as important as selecting the right FPV antenna type.
How do I choose between FPV antenna types?
Start by identifying your FPV system's frequency and connector. Then consider polarization, radiation pattern, desired range, flying style, antenna size, durability, and mounting position. Comparing these factors will help you select the FPV antenna type that best fits your setup.
