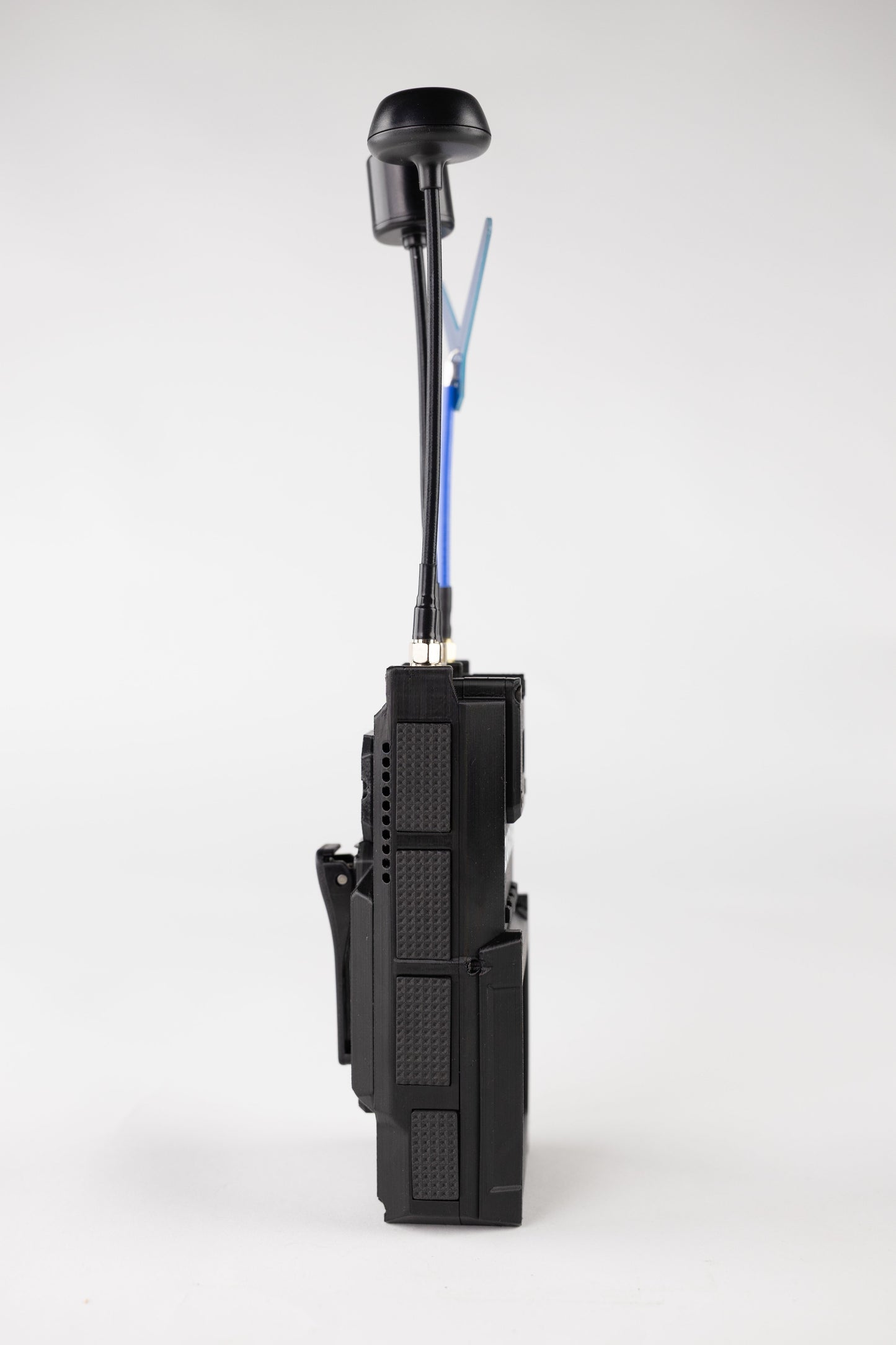

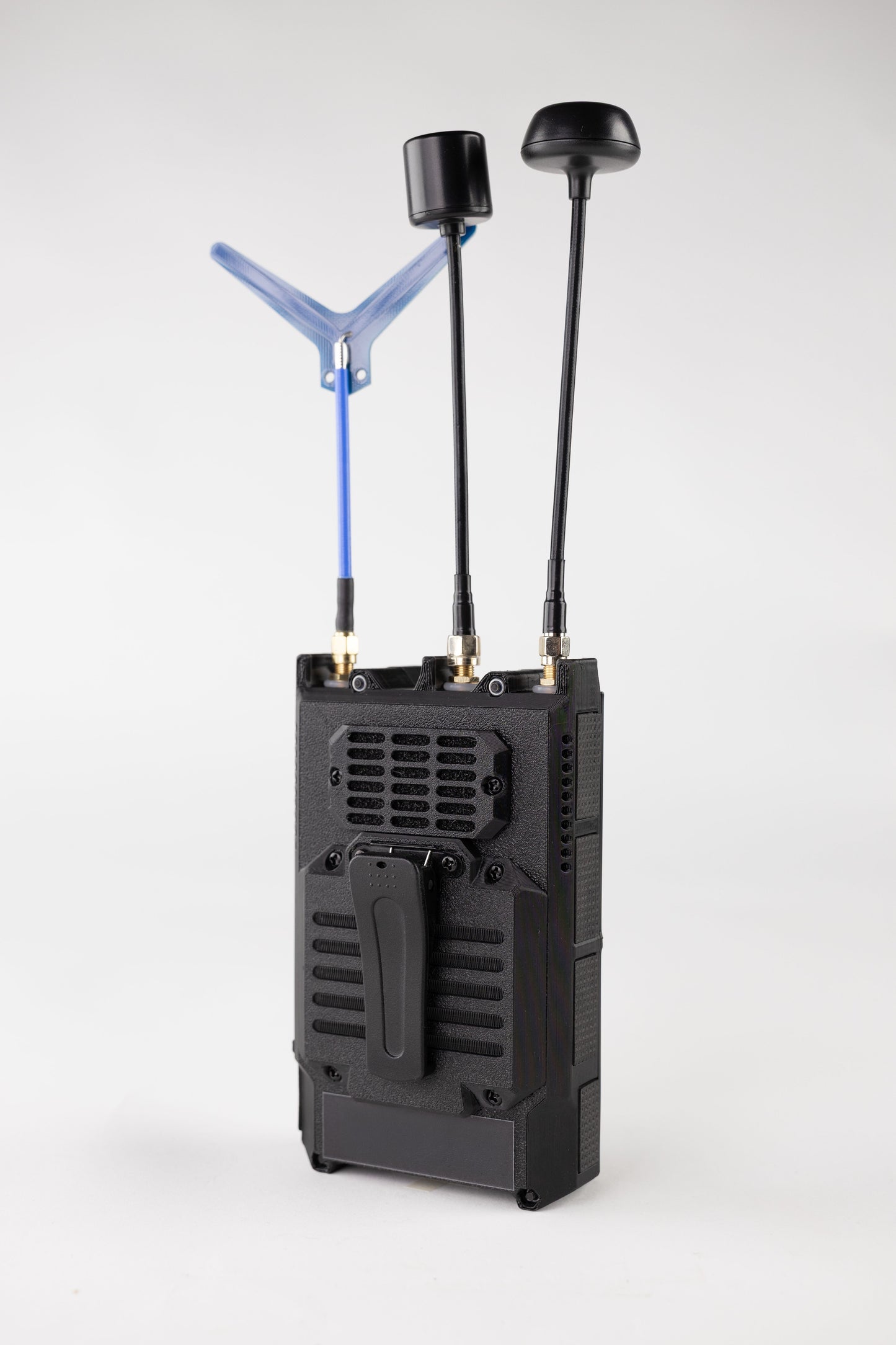

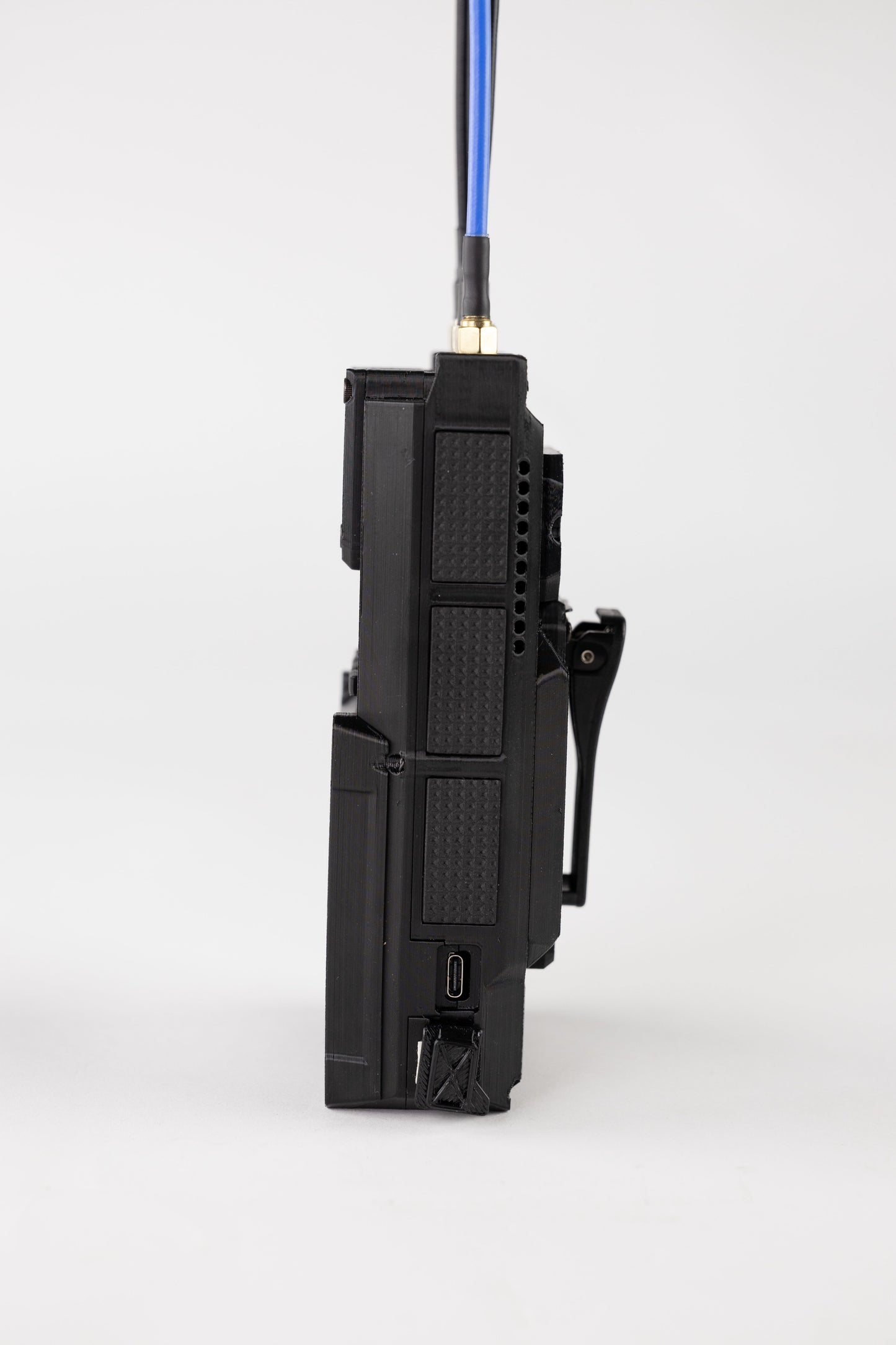

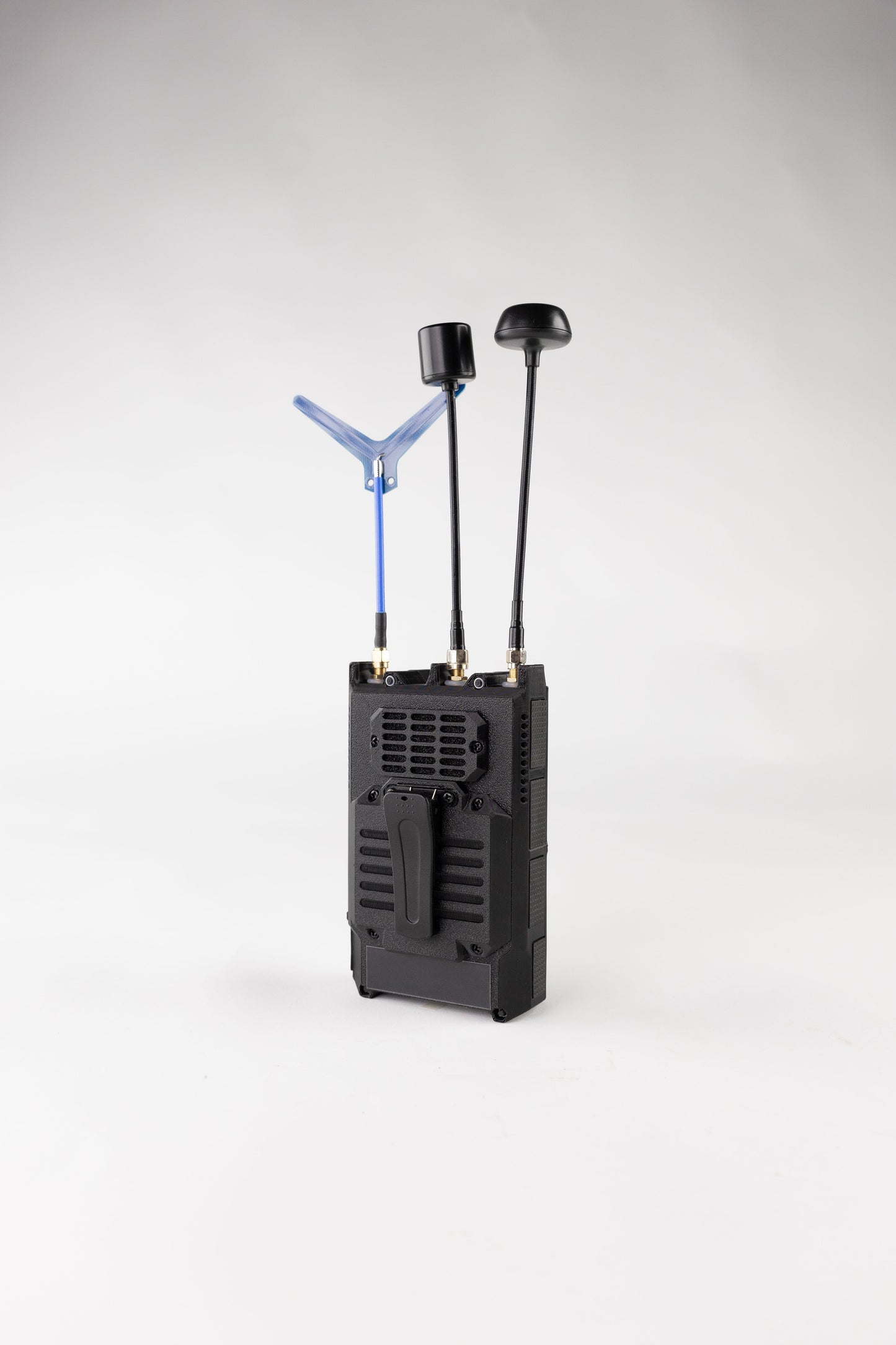

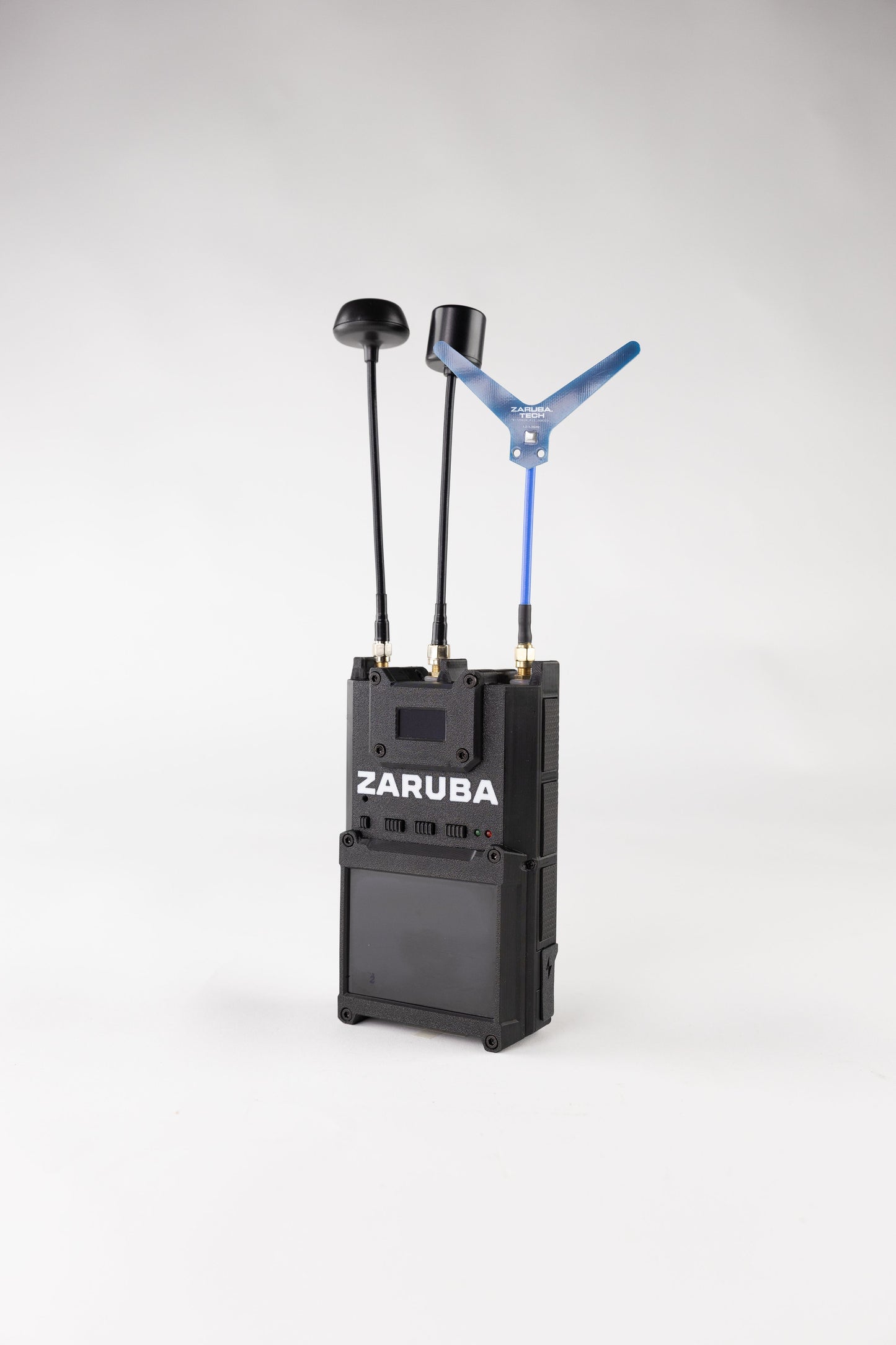

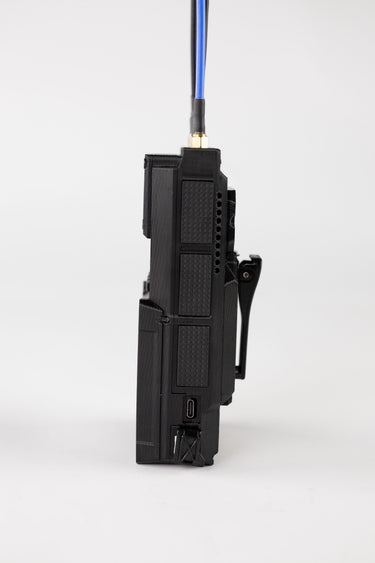

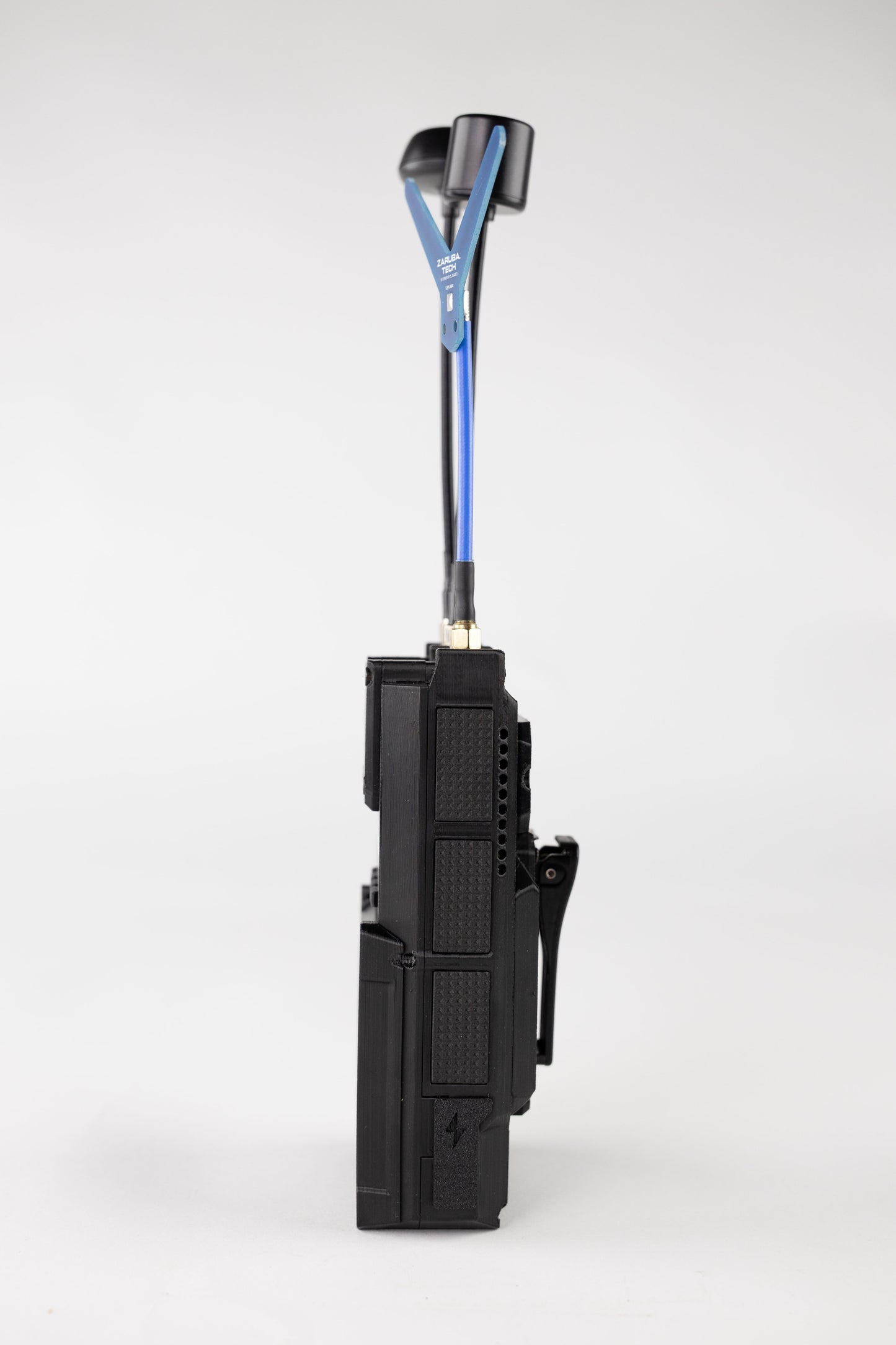

Portable passive RF monitoring device ZARUBA A3
The ZARUBA A3 is a portable, tri-band RF scanner that picks up FPV drone video signals so you know what's flying nearby before it becomes a problem.It's the result of years of feedback from pros who use this gear on the job every day, in real conditions, not just on a bench.
How It Works
Every FPV drone beams a live video feed back to its pilot over radio — usually on 1.3 GHz, 3.3 GHz, or 5.8 GHz. The A3 scans all three bands at once, running a full sweep every 4–8 seconds. Catch a signal, and it lets you know right away with sound and light — and if the signal's strong enough, you'll actually see the video feed pop up on the built-in 3.5″ screen. That's a real confirmation, not just a beep telling you to guess.
Here's the big thing: the A3 only listens. It doesn't transmit, doesn't jam, doesn't mess with anyone's signal. It's a passive receiver, plain and simple. That means nobody can detect it's running, and — as long as you're following federal, state, and local rules — passive RF monitoring like this is generally legal to own and use in the US. That's a real difference from active jammers, which are a whole different (and much more restricted) category.
The housing is impact-resistant PETG, rated IP54, so dust and light rain aren't going to take it out of service. Two swappable 21700 Li-ion cells give you 6–8 hours of run time on a charge, and it juices back up over USB-C in about 4 hours — same cable you're already using for your phone or laptop. Under 1.5 lbs, so it's not dead weight on a long shift.
Detection range up to 2.5 miles, depending on the transmitting drone's power, terrain, and conditions.
Why Buy It Here:
- Works right out of the box. No setup, no guesswork — it's pre-calibrated and scanning within seconds of power-on.
- Ships fast, backed by real support. Order by 2 PM PST and it ships same day from California, with 30-day returns.
- 100% legal peace of mind. It's fully passive — no jamming, no interference — so you can own and use it in the US without any legal gray area.
Field Edition (Fanless) — limited run of 50
Same ZARUBA A3, same tri-band receiver, same detection performance — built without internal fans. With no fans drawing power, the Field Edition runs about one hour longer on a charge (7–9 hours vs. 6–8 hours on the Standard). No fans also means it runs silent, has no moving parts to wear out, and has fewer openings for dust to get in — a good fit for static observation posts and long shifts where quiet matters.
This is a one-time production run of 50 units. Once they're gone, the Standard edition remains available.
| General | |
|---|---|
| Dimensions (without antennas) | 95 × 158 × 47 mm (3.74″ × 6.22″ × 1.85″) |
| Weight | Up to 650 g (1.4 lb) |
| Housing material | Impact-resistant PETG plastic |
| Ingress protection | IP54 — dust-protected, resistant to water splashes |
| Small screen | Service information (channels, histogram, voltage) |
| Large screen | 3.5″ — display shows received compatible video for analysis |
| Max ambient (storage/sun) | +140 °F (+60 °C) |
| RF Performance | |
| Architecture | Passive receiver (no RF emission); parallel high-speed autoscan |
| Band 1.3 GHz / 3.3 GHz / 5.8 GHz | 900–1680 / 3060–3700 / 4990–6000 MHz — up to 4,000 m / 2.5 mi* |
| Full-range scan cycle | 4–8 seconds |
| Band selection | Any combination of bands can be enabled or disabled |
| Sensitivity control | Manual (recommended 10–15%) or automatic, per band |
| False-alarm mitigation | Filtering of non-video interference; Channel blacklist |
| Scrambled signals | Inverted-video transmission supported (descrambler) |
| Antenna interface | 3 × SMA female — supports higher-sensitivity antennas |
| Tuning modes | Autoscan (default); standard VRX mode with manual channel tuning |
| Power | |
| Battery | 2 × 21700 Li-ion cells (2S), 4500 mAh, 8.4 V max charge, 33.3 Wh |
| Runtime | 6–8 hours of operation |
| Charging | USB Type-C fast charging, QC protocol required |
| Charge time | 4 hours to full while operating |
| Voltage display | Real battery voltage is shown on the information screen |
| Low-battery behavior | Warning at 7.0 V; forced shutdown at 6.4 V |
Drag to rotate · scroll to zoom
Picks up everything in range
Been running the A3 for about three weeks now, mostly for perimeter checks around a work site. Sweep is quick and it flagged handhelds I already knew were there, so the readings line up with reality. Battery gets me through a full shift with room to spare. Build feels solid, nothing rattles. Only note is that the manual is thin — took me an evening of poking around to get comfortable with it.
