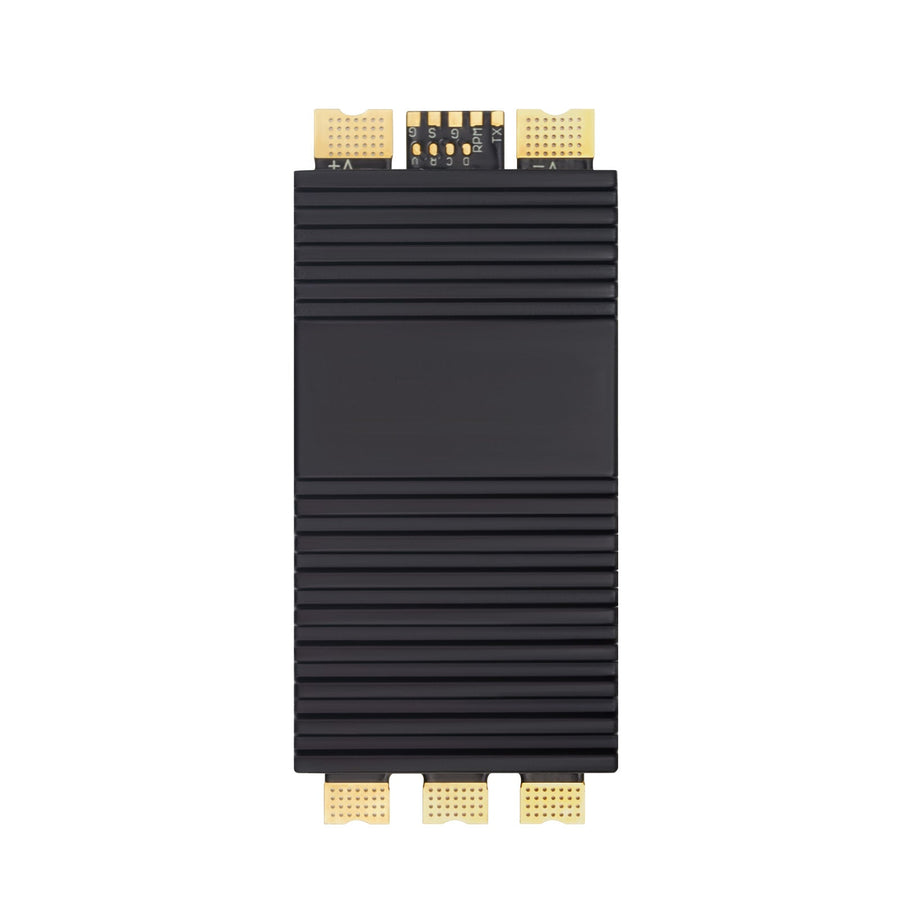

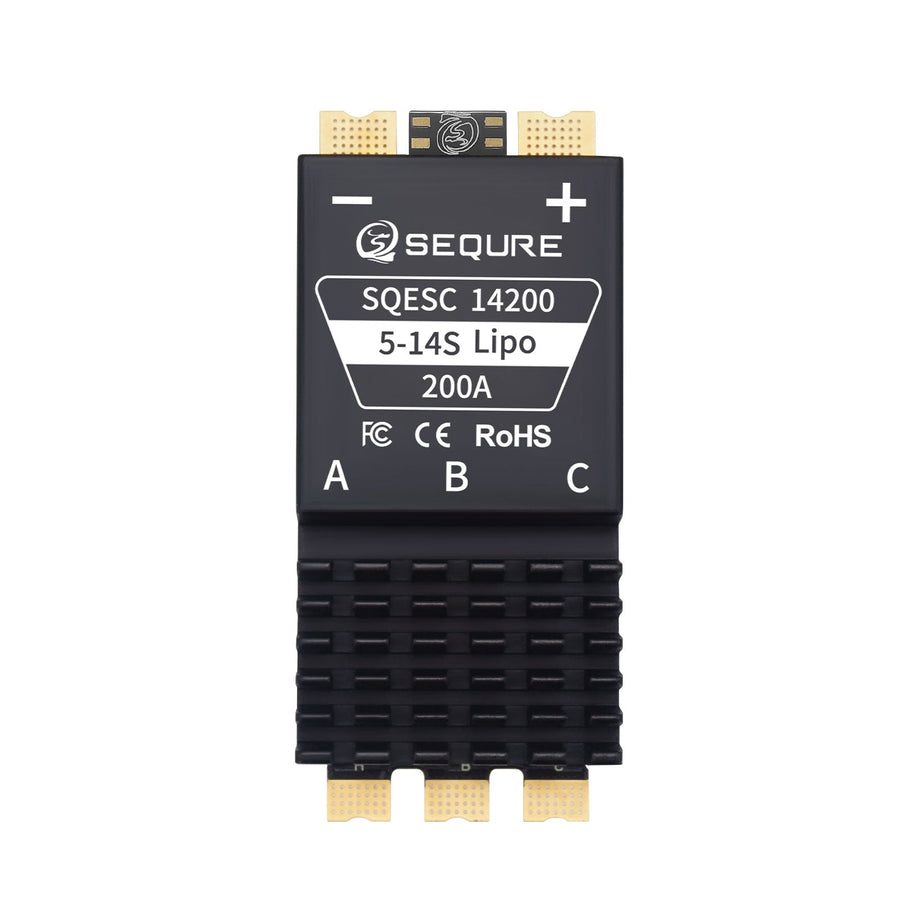

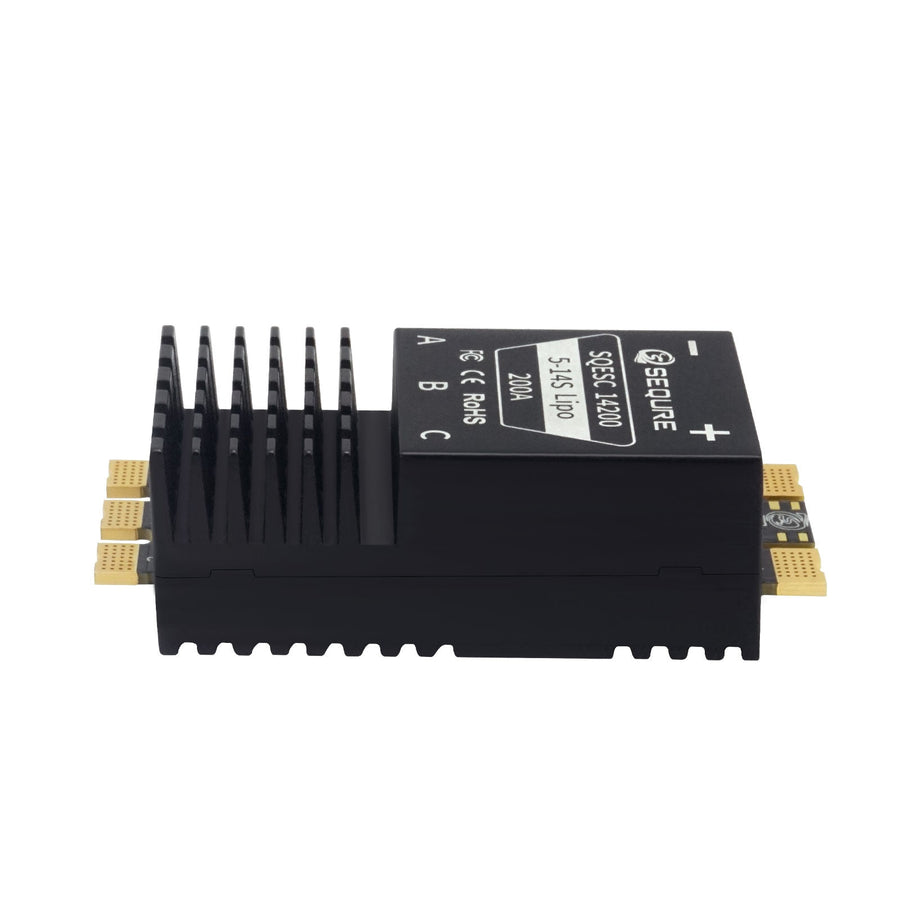

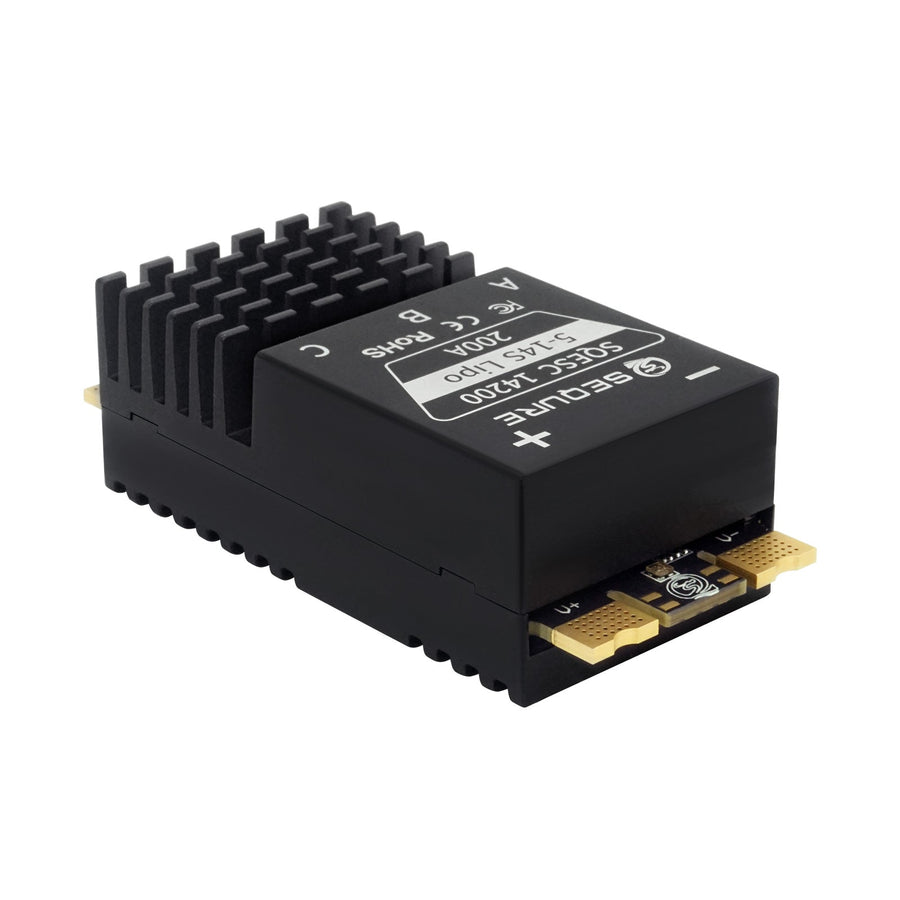

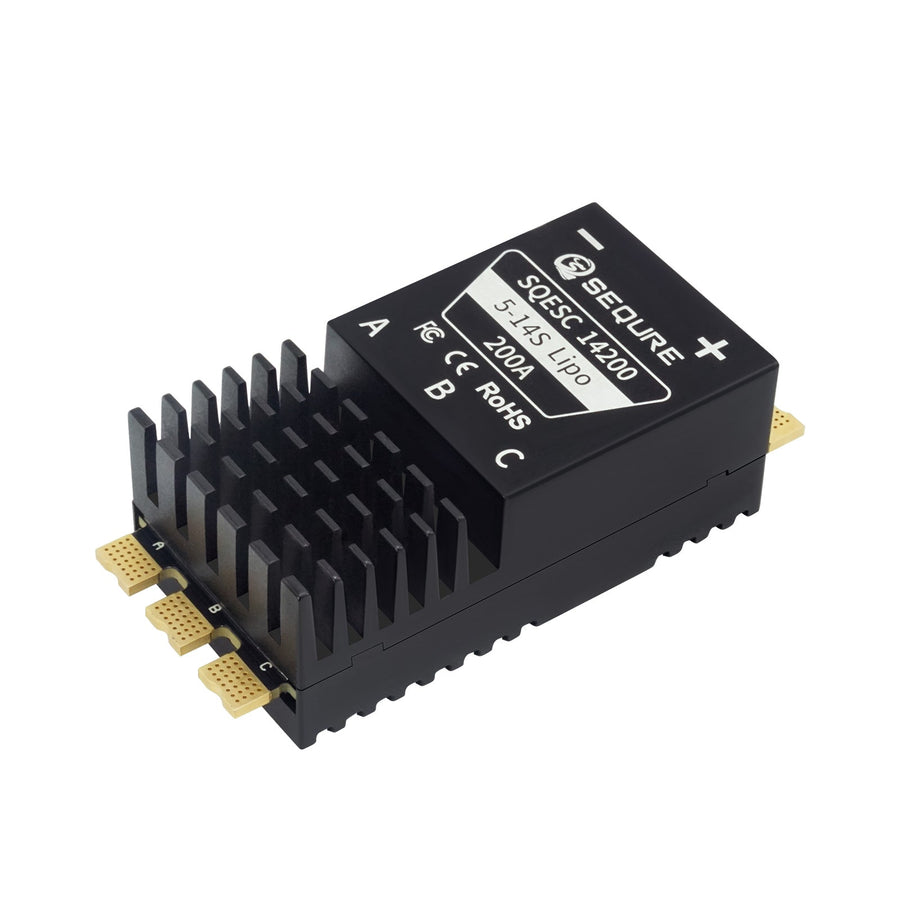

14200 ESC 5-14S 200A
If you need WiFi-Link/ESC-Link parameter configuration tool,
Product Description:
(1) Adopting 32-bit high-performance processor STM32G071.Supporting AM32/ESCape32/BLHeli_32 firmware.It can program multiple motion modes of a motor, like unidirectional, bidirectional, and brake.
(2) Equips with high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) SQESC 14200 NO BEC, while pro has. The SQESC 14200M can set the BEC output voltage to 5.2V/6V/7.4V/8.4V 3A continuous current by simple soldering.The SQESC 14200 Pro is equipped with a dip switch system to adjust the voltage of BEC from 6V,7.4V,8.4V,12V. The continuous current is 15A, while peak current is 35A.
(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(7) Onboard RGB LED color light settings, multiple LED colors can be customized.
(8) Widely used in multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc
Parameters of Product:
|
Model Name |
SQESC 14200 |
SQESC 14200M |
SQESC 14200 Pro |
|
Processor |
STM32G071 |
||
|
Input Voltage |
DC 18V-59V(5-14S Lipo) |
||
|
Continuous Current (Good Heat Dissipation) |
200A |
||
|
Maximum current (Good Heat Dissipation) |
350A |
||
|
Support Firmware |
BLHeli_32, AM32, ESCape32, Optional |
||
|
Signal Protocol |
Dshot(All), PWM, Oneshot, Multishot, etc. |
||
|
RPM Signal Line |
BLHeli_32(NO), AM32(YES), ESCape32(YES) |
||
|
Programming Parameter Adjustment |
Support |
||
|
Throttle Calibration |
Support |
||
|
Timing Angle Setting |
Support |
||
|
Current Detection |
Support |
||
|
Telemetry Signal |
Support |
||
|
Motor Steering Settings |
Support |
||
|
RGB LED Color Lights |
Support |
||
|
FAN |
NO |
NO |
YES |
|
BEC |
NO |
BEC:5.2V/6V/7.4V/8.4V 3A continuous current |
BEC:6V/7.4V/8.4V/12V, 15A continuous current 35A peak current. |
|
Power and Motor Cables |
NO |
NO |
Power Cable(8AWG silicone wire 160mm) Motor Cable(10AWG silicone wire 160mm) |
|
Product Size |
85.5*38*26.5mm (L*W*H) |
84*38*26.5mm(L*W*H) |
96*46*38mm(L*W*H, not including wire) |
|
Product Weight |
127g |
134g |
293g(including wire) |
|
Application Scenarios |
Multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc |
||
Package included:

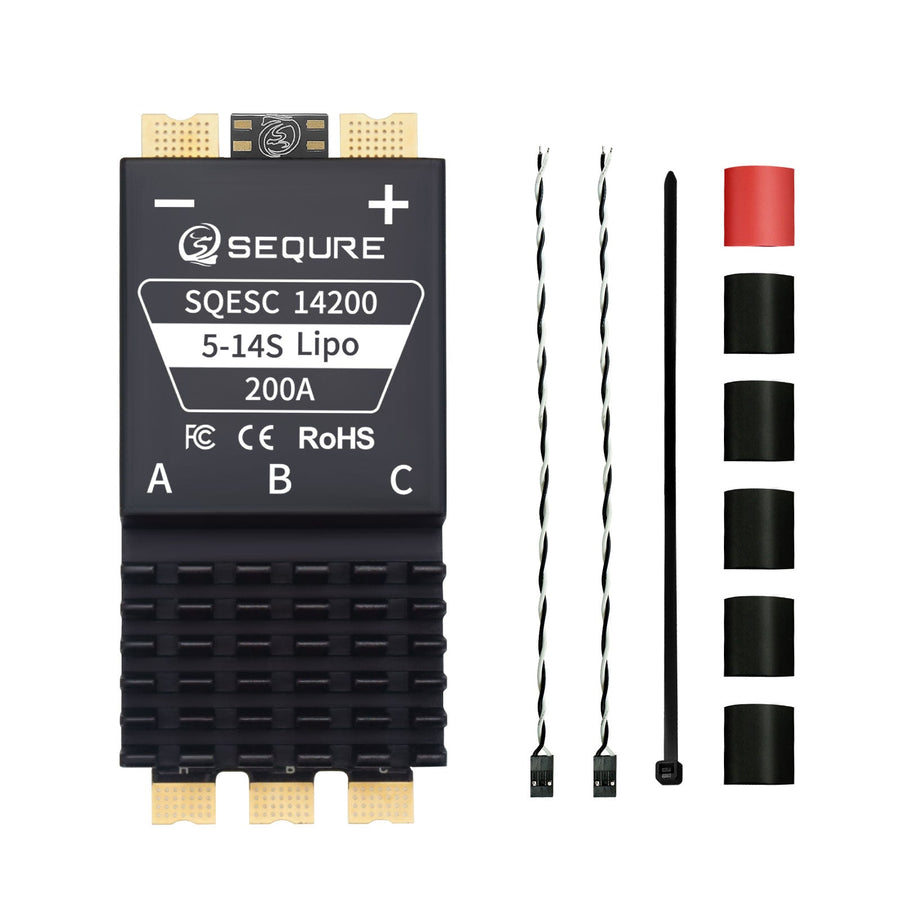

14200(AM32)/14200(ESCape32)/ 14200(BLHeli_32),Optional
14200 ESC×1
300mm Twisted Pair Cable×2
Casing Pipe(black and red)×6
4*250mm Black Tie Straps×1

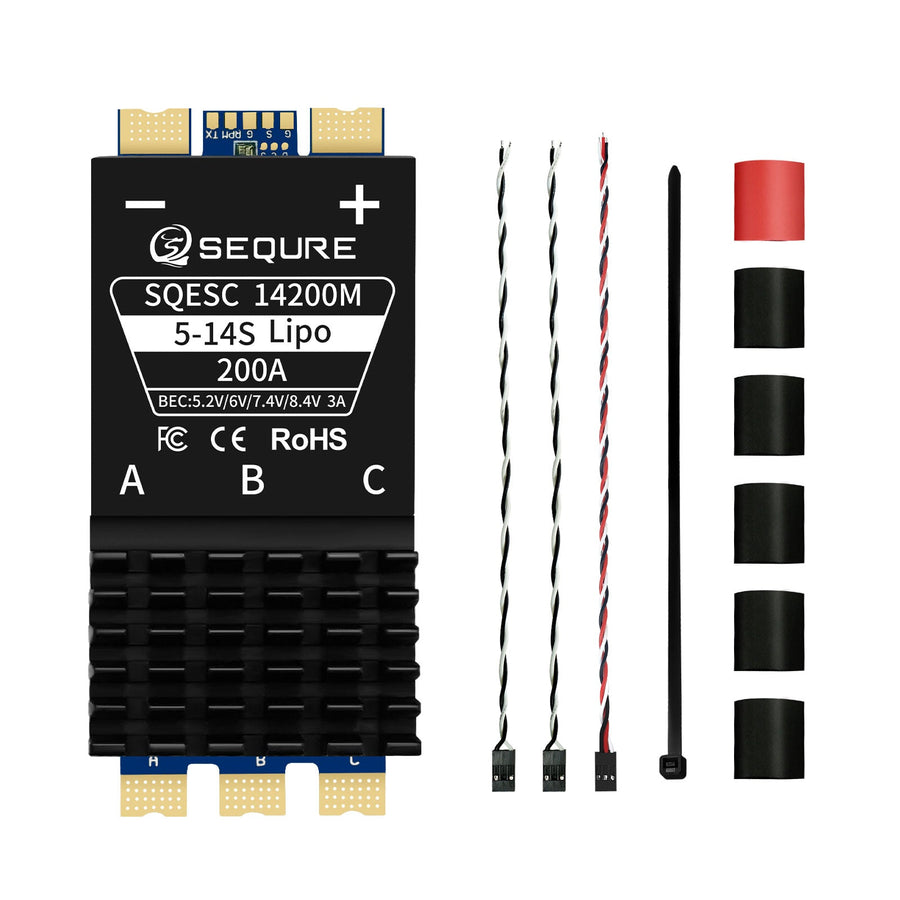

14200M(AM32)/14200M(ESCape32)/ 14200M(BLHeli_32),Optional
14200M ESC×1
300mm Twisted Pair Cable×2
300mm Three-color Twisted Cable×1
Casing Pipe(black and red)×6
4*250mm Black Tie Straps×1

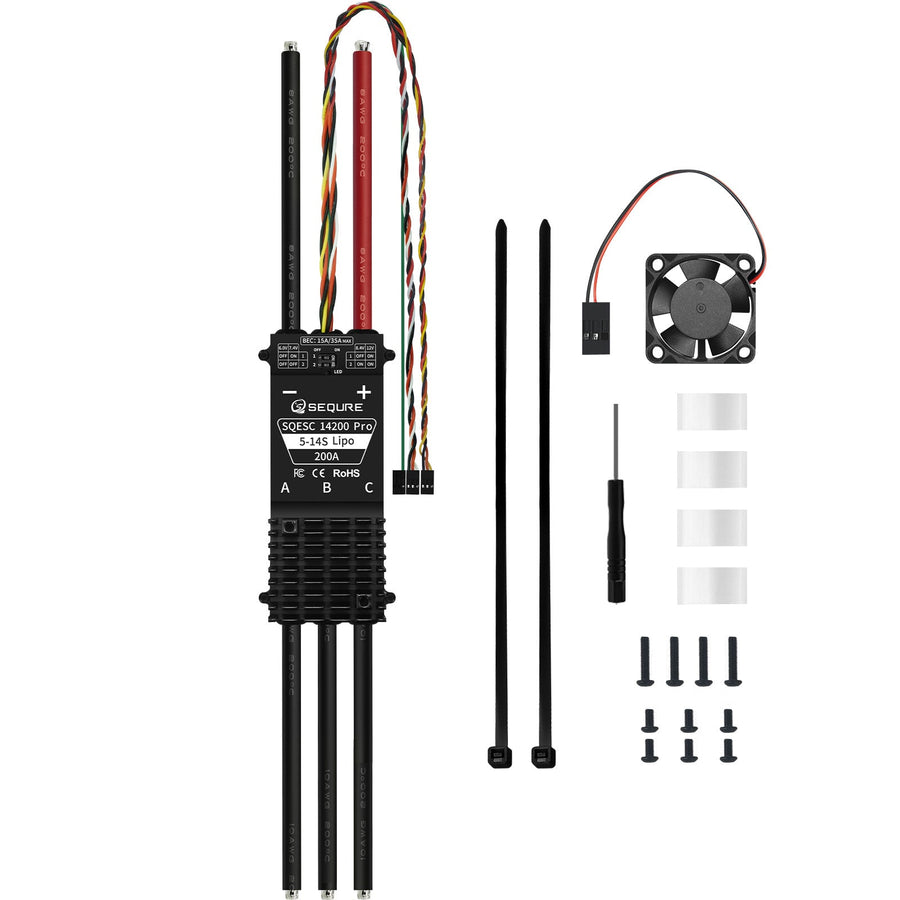

14200 Pro(AM32)/14200 Pro(ESCape32)/14200 Pro(BLHeli_32),Optional
14200 Pro ESC×1
5V Fan×1
4*250mm Black Tie Straps×2
M3*14 Hexagonal Screws×4
M3*6 Hexagonal Screws×6
Transparent Heat Shrinkable Sleeve×4
H2 Allen Key×1
Overall Dimension:
14200(AM32)/14200(ESCape32)/ 14200(BLHeli_32),Optional
(1) Product Size: 85.5*38*26.5mm
Net Weight Of Product: 127g
(2) Package Size: 150*100*35mm
Packing Weight: 138g
(3) Package Size (Including Outer Carton):155*105*40mm
Packing Weight (Including Outer Carton):179g
14200M(AM32)/14200M(ESCape32)/ 14200M(BLHeli_32),Optional
(1) Product Size: 84*38*26.5mm
Net Weight Of Product: 134g
(2) Package Size: 150*100*35mm
Packing Weight: 150g
(3) Package Size (Including Outer Carton):155*105*40mm
Packing Weight (Including Outer Carton):190g
14200 Pro(AM32)/14200 Pro(ESCape32)/14200 Pro(BLHeli_32),Optional
(1) Product Size: 96*46*38mm
Net Weight Of Product: 293g
(2) Package Size: 150*150*45mm
Packing Weight: 322g
(3) Package Size (Including Outer Carton):155*155*55mm
Packing Weight (Including Outer Carton):373g
