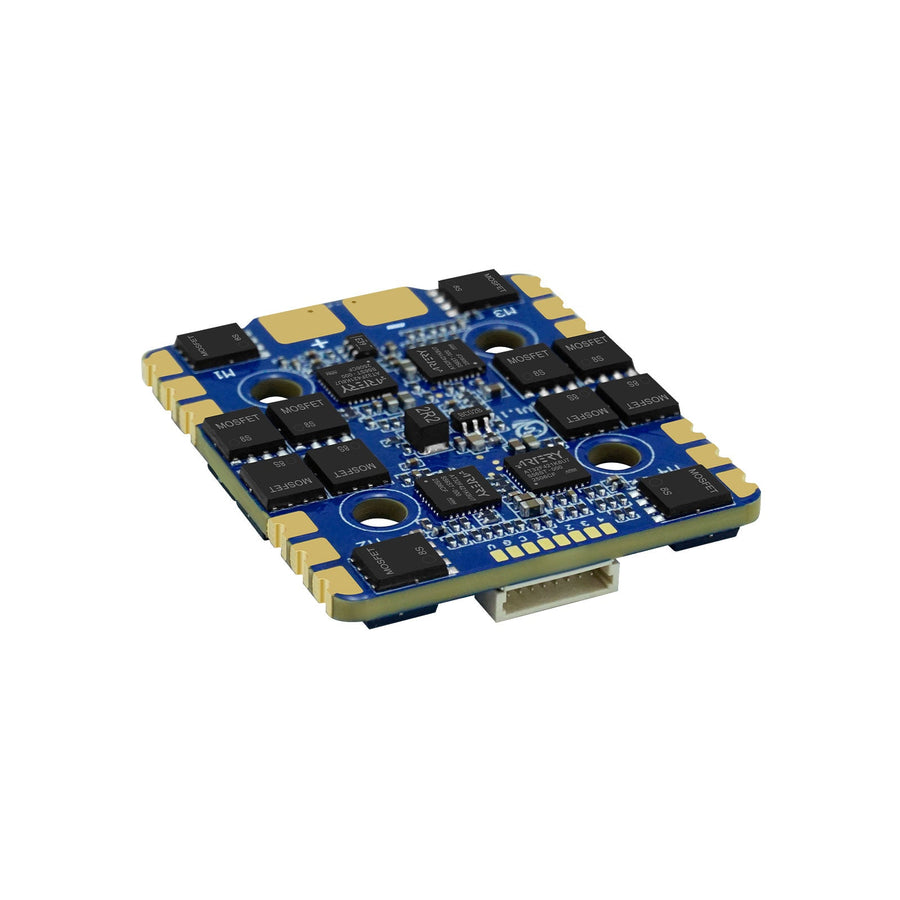

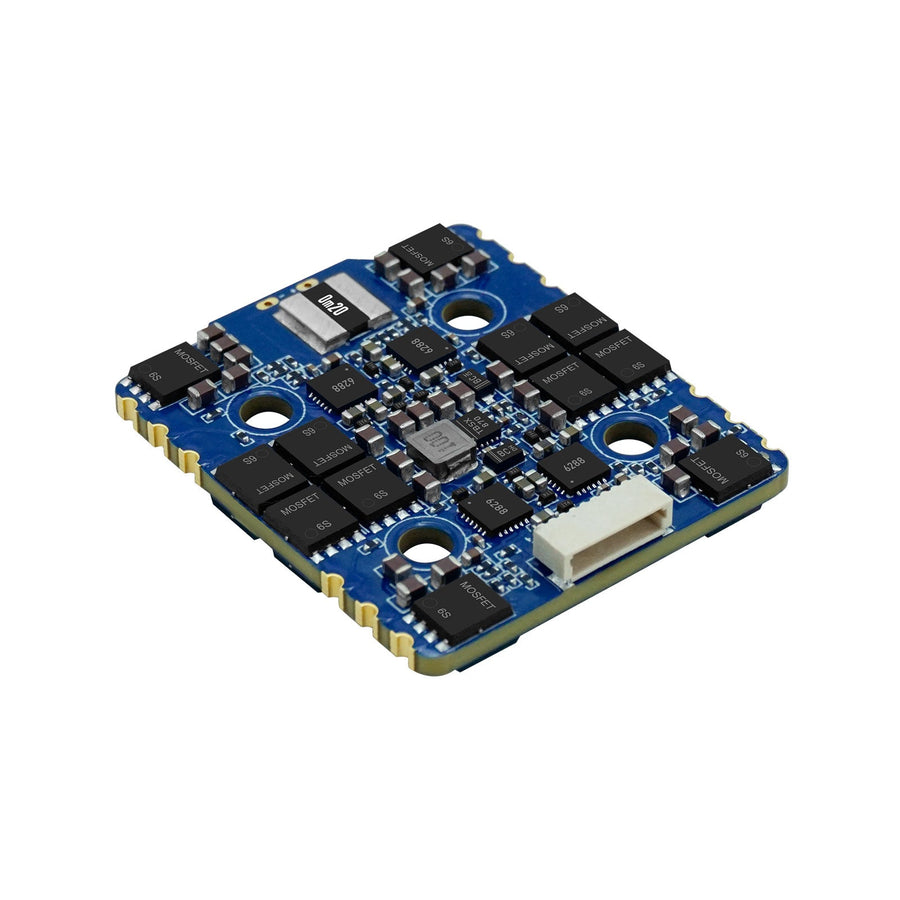

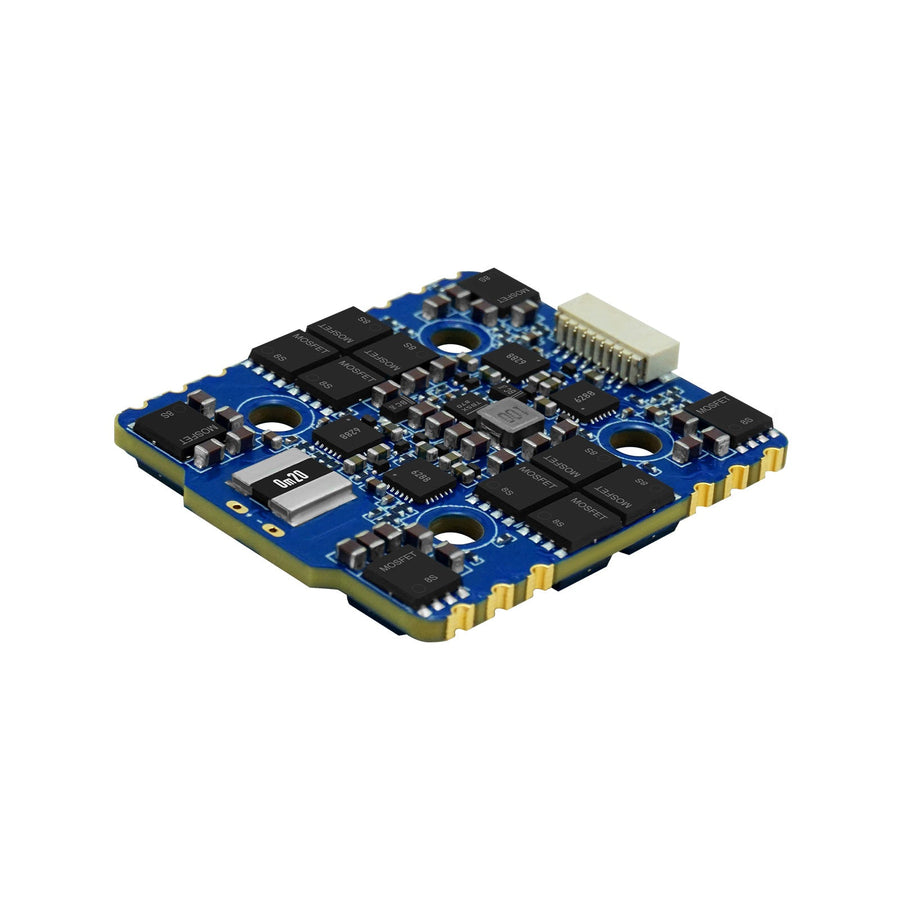

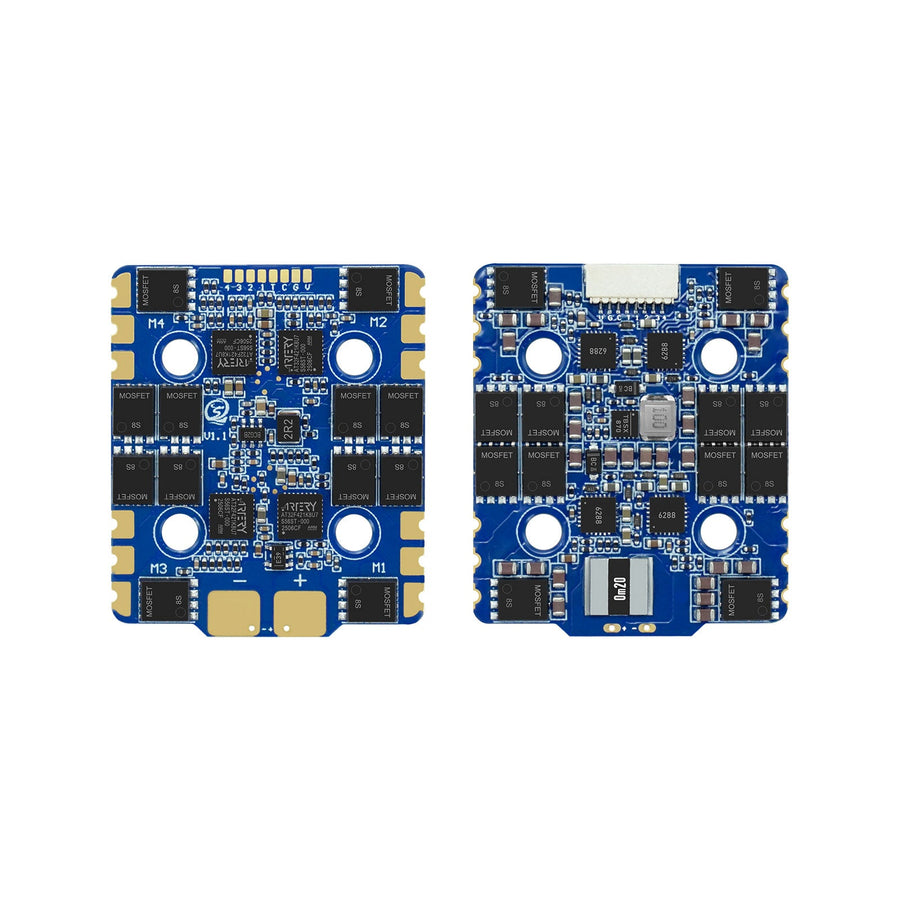

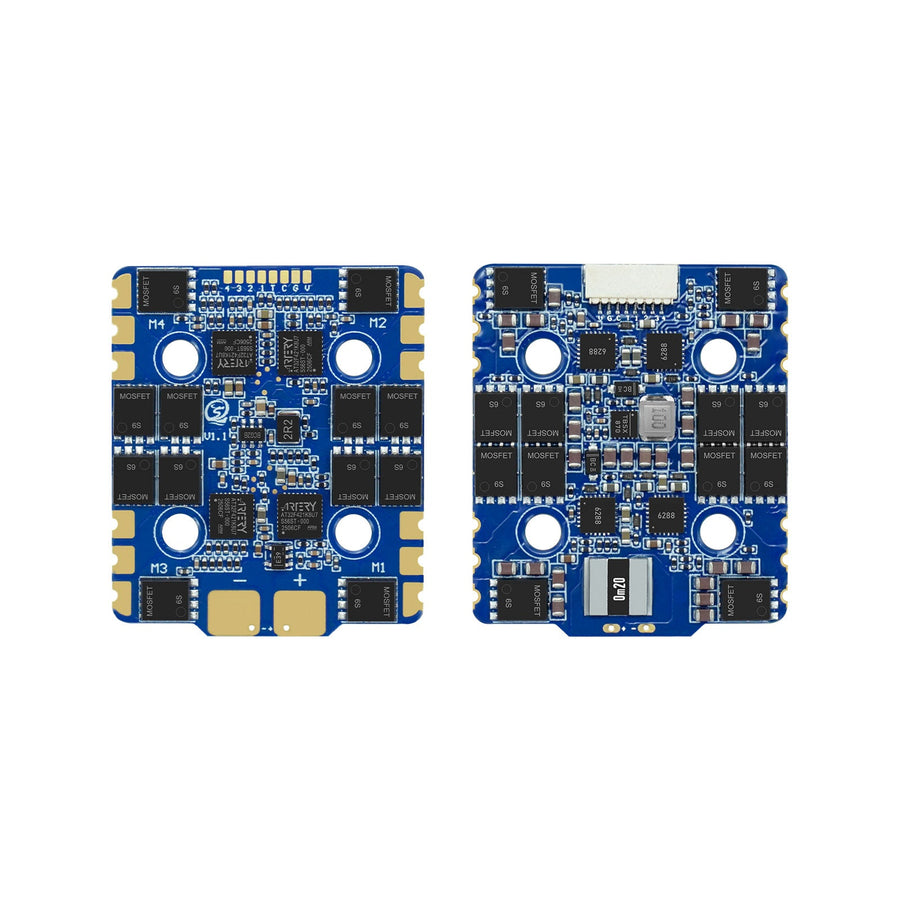

Blueson A1 4-in-1 ESC 2-8S 70A (20x20)

Product Description:

(1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
(2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
(3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
(4) With 20*20mm installation hole spacing, it is tailor-made for racing drones and easy to install.
(5) ESC reserves a large area of solder pad to effectively reduce the difficulty of soldering.

Parameters of Product:

Model	Blueson A1
Processor	AT32F421
Firmware Version	AM32 or BLHeli_32
PWM Frequency	8KHz-128KHz
Working Voltage	2-6S / 2-8S Lipo / LiHV
Continuous Current	6S 65A / 8S 70A
Peak Current	6S 120A / 8S 150A
Support Protocol	Dshot600/300/150,Oneshot,Multishot,PWM
Telemetry Return	YES
Galvanometer	YES
BEC	NO
Mounting Hole Spacing	20*20mm, Φ4mm/M3
Product Size	42.5*36*7mm(L*W*H)
Product Weight	19g

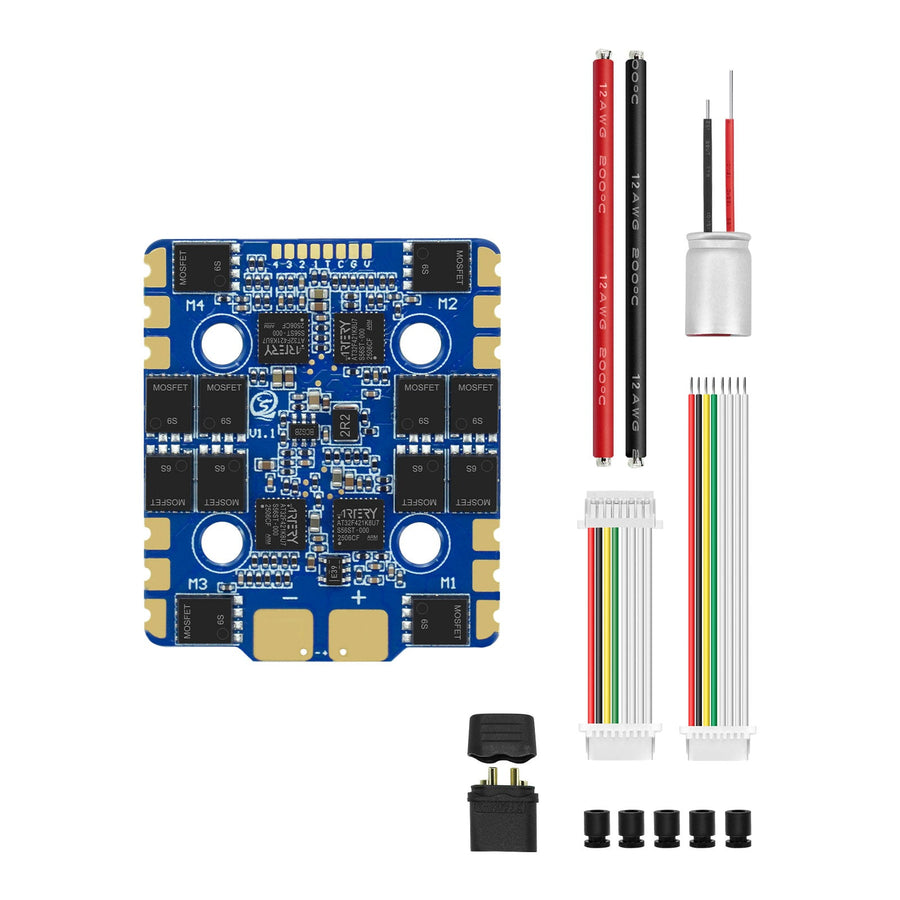

Package included:

Zaruba Blueson A1 4IN1 ESC × 1
30AWG 40mm reverse double plug SH1.0-8P cable × 1
30AWG 60mm single plug SH1.0-8P cable × 1
12AWG 100mm power cable (black/red)×2
XT60H-M black male connector×1
35V 680UF solid capacitor×1
M3*8mm shock absorbing washer (black) × 5

Overall Dimension:

(1) Product Size:42.5*36*7mm
Net Weight Of Product:19g
(2) Package Size: 90*60*35.5mm
Packing Weight: 63g
(3) Package Size (Including Outer Carton):155*105*40mm
Packing Weight (Including Outer Carton):105g
