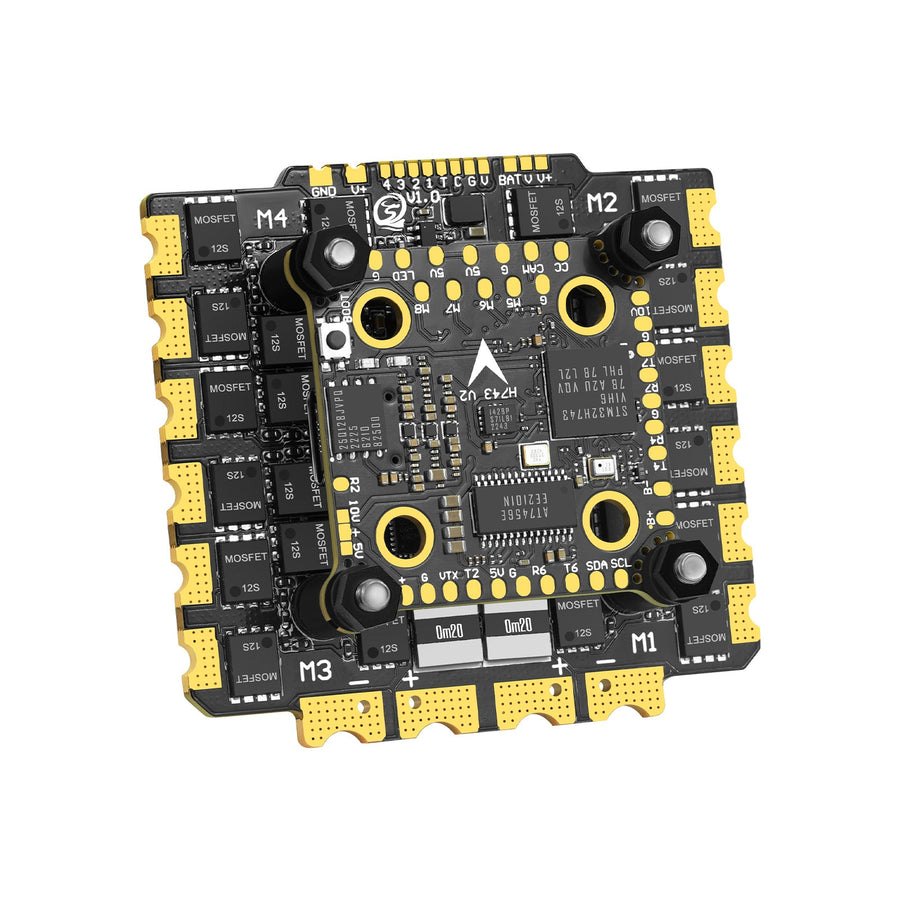

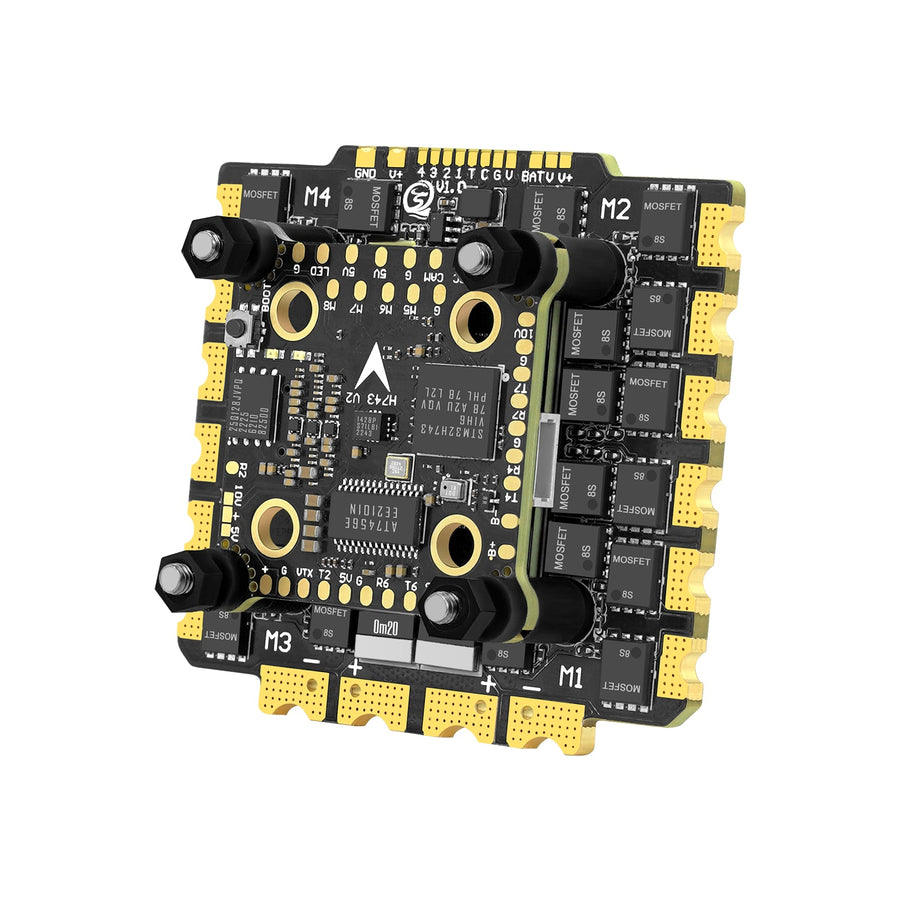

H743 V2 & E130 G2 Stack FC 130A 4-8S
Product Description:
Zaruba H743 V2 FC
(1) Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
(2) Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
(3) Zaruba H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
(4) Reserve 6 UARTS to meet the needs of most devices.
(5) It can control up to 8 motors, easily constructing X8.
(6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3/O4/O4 Pro and analog VTX to plug in for use directly.
(7) Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.
E130/E160 G2 4IN1 ESC
(1) It uses the STM32G071 32-bit high-performance processor and supports the AM32|BLHEli_32 firmware.
(2) Wide input voltage range of 4–12S. The E130 G2 supports a continuous current of 130A (peak 220A) per channel, while the E160 G2 supports a continuous current of 160A (peak 280A) per channel.
(3) Features low-resistance, high-power MOSFET for ultra-high efficiency conversion, reducing power loss and extending flight time.
(4) The power supply features a dual-pad design with parallel battery configuration, making soldering easier and providing greater current-carrying capacity.
(5) Features high-quality, multi-layer PCBs with ultra-thick copper layers and an on-board copper bar design to increase current-carrying capacity and enhance heat dissipation. No fear of load pressure.
(6) Precise switching intervals and superior circuit design eliminate desynchronization issues. This accelerates the ESC's response time, ensuring smooth control and a refined hand feeling.
(7) Supports real-time data transmission for multiple parameters: Equipped with a built-in ammeter, it supports telemetry transmission and provides real-time updates on motor speed, temperature, current, and other data.
(8) When powered on, the ESC automatically detects the throttle signal and supports all D-Shot signals, as well as PWM, One-Shot, and Multi-Shot signal protocols.
(9) A visual programming and tuning tool that supports settings such as motor timing, throttle calibration, current detection, motor rotation direction, and telemetry signals.
(10) Designed with a 30.5 x 30.5 mm mounting hole pattern, it is compatible with a wide range of racks, making installation a breeze.
Parameters of Product:
|
Product Name |
Zaruba H743 V2 |
|
Processor |
STM32H743 |
|
Gyroscope |
ICM-42688-P |
|
Barometer |
BMP280/DPS310/DPS368 |
|
OSD Chip |
AT7456E |
|
Black Box |
16MB |
|
Firmware Type |
Betaflight (default), INAV, ArduPilot |
|
Firmware Name |
ZarubaH7V2 |
|
Input Voltage |
4-8S Lipo/LiHV |
|
BEC Output |
5V/2.5A, 10V/2A |
|
UARTS |
6 |
|
Control Motor |
M1-M8 |
|
LED |
WS2812 LED Strip |
|
Buzzer |
Support |
|
ESC Telemetry |
RX8 |
|
USB |
Type-C |
|
Installation Hole Distance |
20x20mm,Φ4mm/M3 | 30.5x30.5mm,Φ4mm/M3 |
|
Product Size |
36.5*36.5*6mm |
|
Product Weight |
7.3g |
|
Model |
E130 G2 |
E160 G2 |
|
Processor |
STM32G071 |
|
|
Working Voltage |
4-8S(14-35.2V)Lipo / LiHV , 4-12S(14-53V)Lipo / LiHV |
|
|
Continuous Current |
130A |
160A |
|
Peak Current |
220A |
280A |
|
Firmware Version |
AM32 or BLHeli_32 |
|
|
Support Protocol |
Dshot(All), PWM, Oneshot, Multishot,etc. |
|
|
Telemetry Return |
YES |
|
|
Galvanometer |
YES |
|
|
BEC |
16V 2A |
|
|
Mounting Hole Spacing |
30.5*30.5mm, ø4mm/M3 |
|
|
Product Size |
54*57*7mm(L*W*H) |
54*57*10mm(L*W*H) |
|
Product Weight |
43g |
66g |

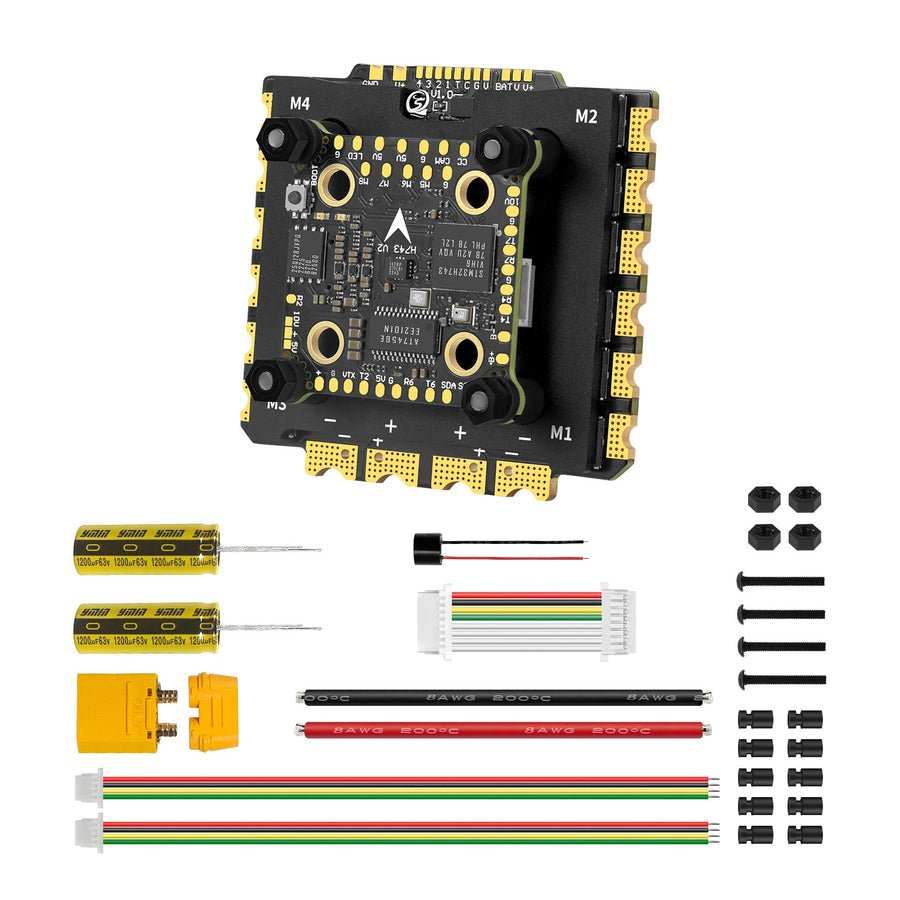

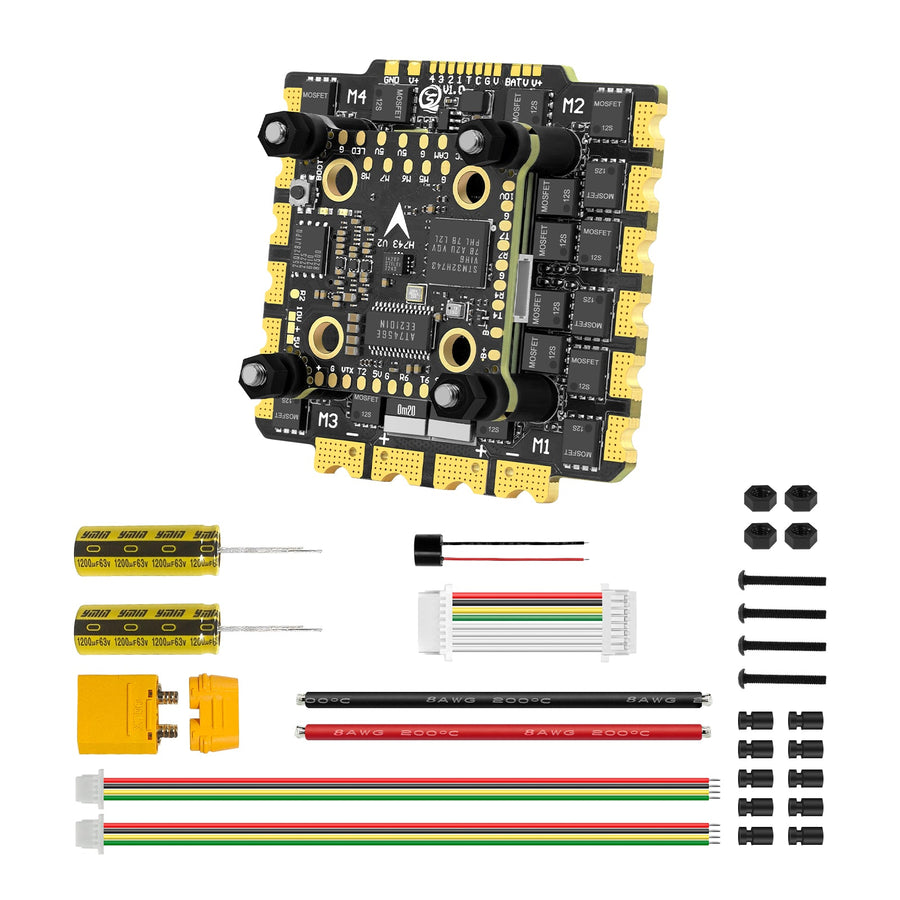

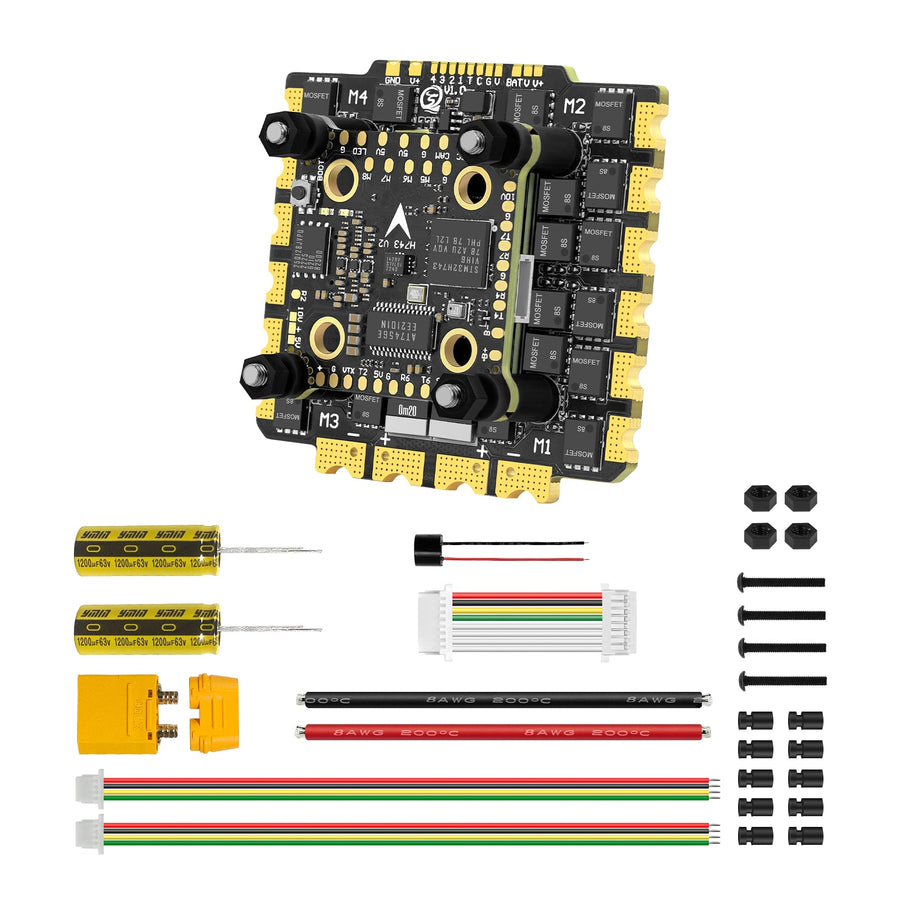

Package included:
Zaruba H743 V2 FC x 1
E130/E160 G2 4IN1 ESC×1
63V 1200UF Electrolytic Capacitor×2
XT90H-M Male Connector×1
M3*10mm Shock Absorbing Washer (black) × 10
M3*30mm Screw×4
M3 Nylon Nut×4
30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable×1
30AWG 100mm Single-head SH1.0-4P Flat Cable×2
8AWG 150mm Power Cable (black/red)×2
60mm Length 12095 5V Buzzer×1
Overall Dimension
Zaruba H743 V2 & E130 G2
(1)Product Size: 54*57mm
Net Weight Of Product: 54.7g
(2)Package Size: 120*80*35mm
Packing Weight: 155g
(3)Package Size (Including Outer Carton):155*105*50mm
Packing Weight (Including Outer Carton):203g
Zaruba H743 V2 & E160 G2
(1)Product Size: 54*57mm
Net Weight Of Product: 79.7g
(2)Package Size: 120*80*35mm
Packing Weight: 177g
(3)Package Size (Including Outer Carton):155*105*50mm
Packing Weight (Including Outer Carton):226g
