MSS12 Mini OLED Soldering Station (T12)

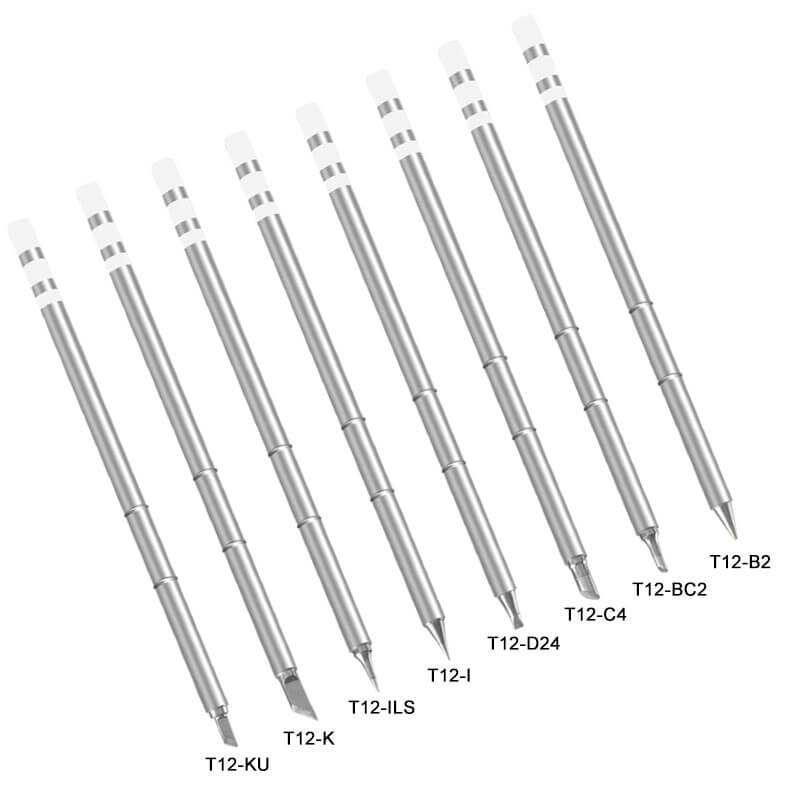

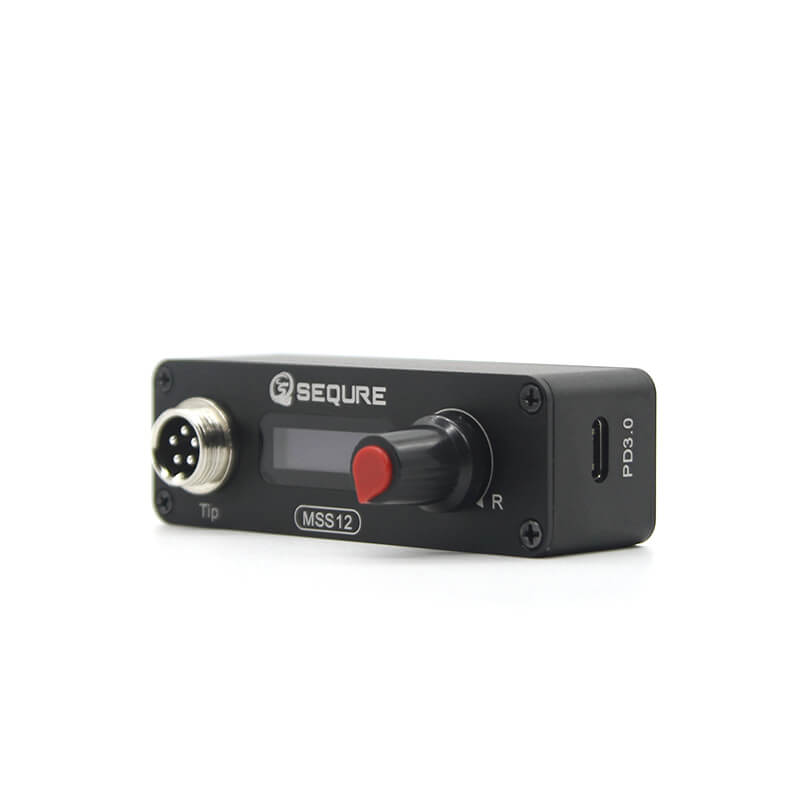

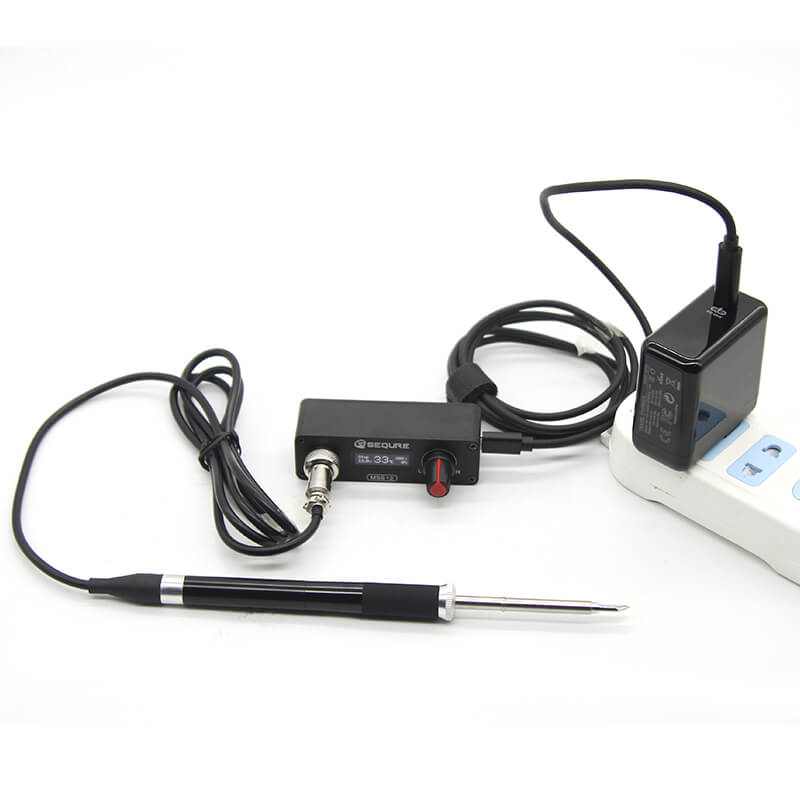

Product Description: MSS12 mini soldering station comes with 0.91 inch OLED display, supports PD3.0, DC5525 12V-25V/3S-6S lipo battery power supply, programmable firmware upgrade, Celsius and Fahrenheit switching, compatible with T12 soldering iron tips, the temperature can be calibrated and compensated, and the intelligent temperature control can reach plus or minus 1 degree.

Heating Test

Working Voltage	Power	The fastest time to heat up from 30°C to 300°C
12v	16w	37s
19v	40w	14s
24v	65w	9s

Technical Parameter

Working temperature: 100℃-450℃/212℉-842℉
Temperature unit: ℃/℉

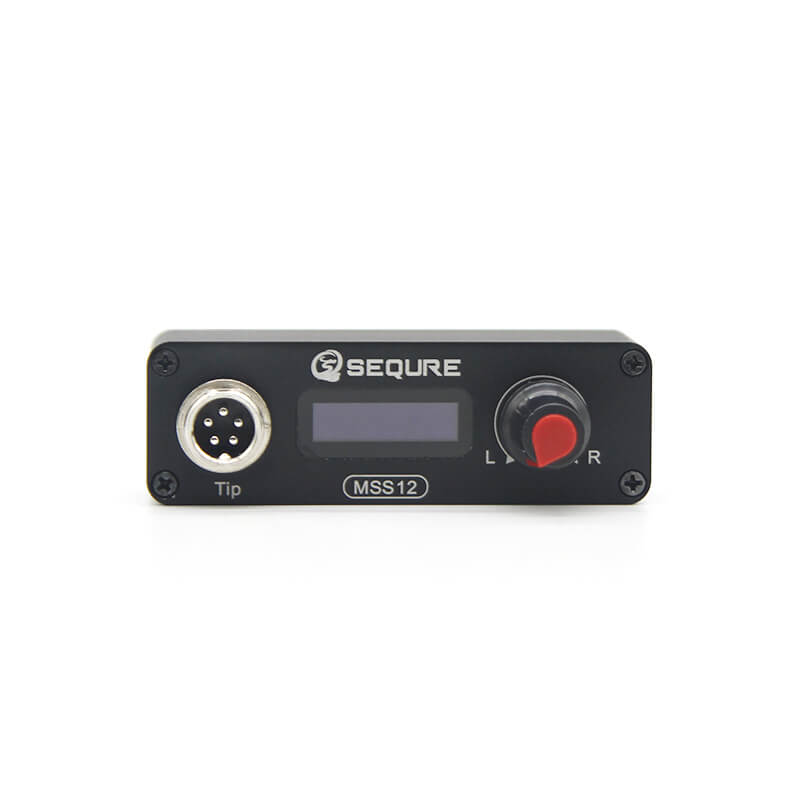

Menu display: 0.91 inch OLED

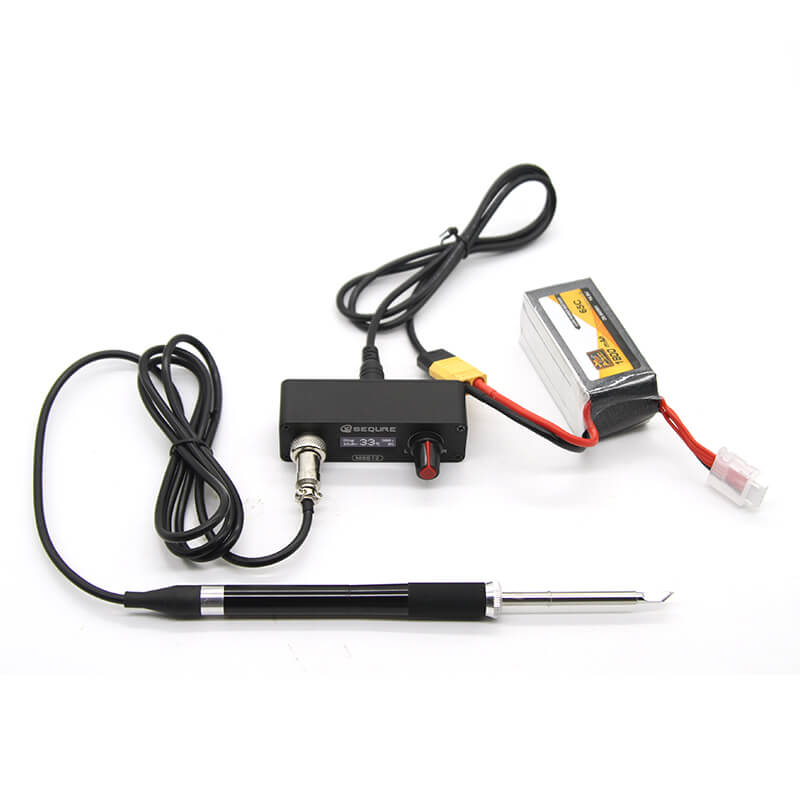

Working voltage: DC12V-25V/3S-6S
Shell material: aluminum alloy
Sleep wake: support
Protection reminder: support
Firmware upgrade: support
Temperature calibration: support
Screen flip: support

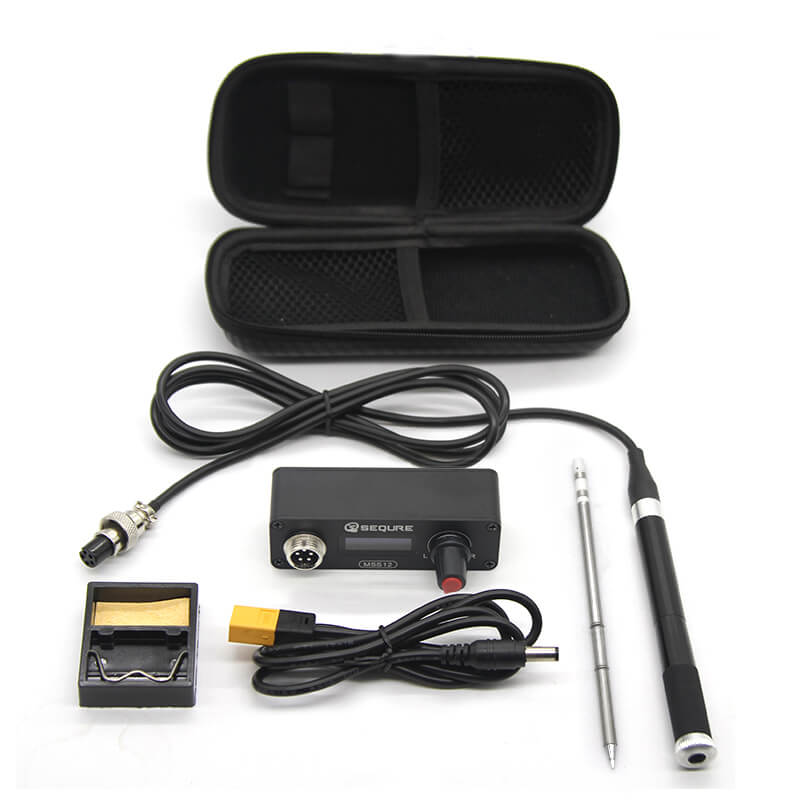

Package Includes

Host×1
Handle×1
Soldering iron tip×1
Soldering iron stand×1
Manual×1
Storage bag×1
XT60 power cord×1

Overall Dimension

(1) Product Size: 80*43*26mm
Net Weight Of Product: 63g

(2) Package Size: 178*71*49mm
Packing Weight: 252g
