S99 Soldering Iron (C245) - simple, 1 tip

S99 Product Description:

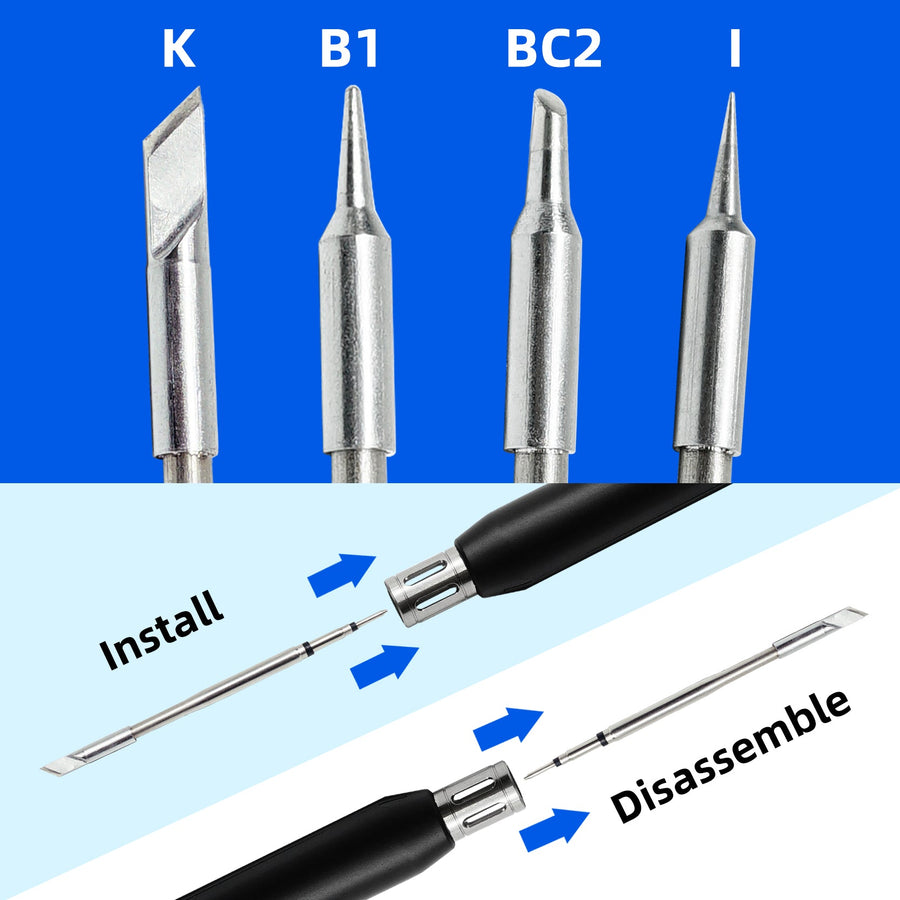

- Compatible with C245 series soldering iron tips, temperature adjustable range 50℃-500℃/122℉-932℉.

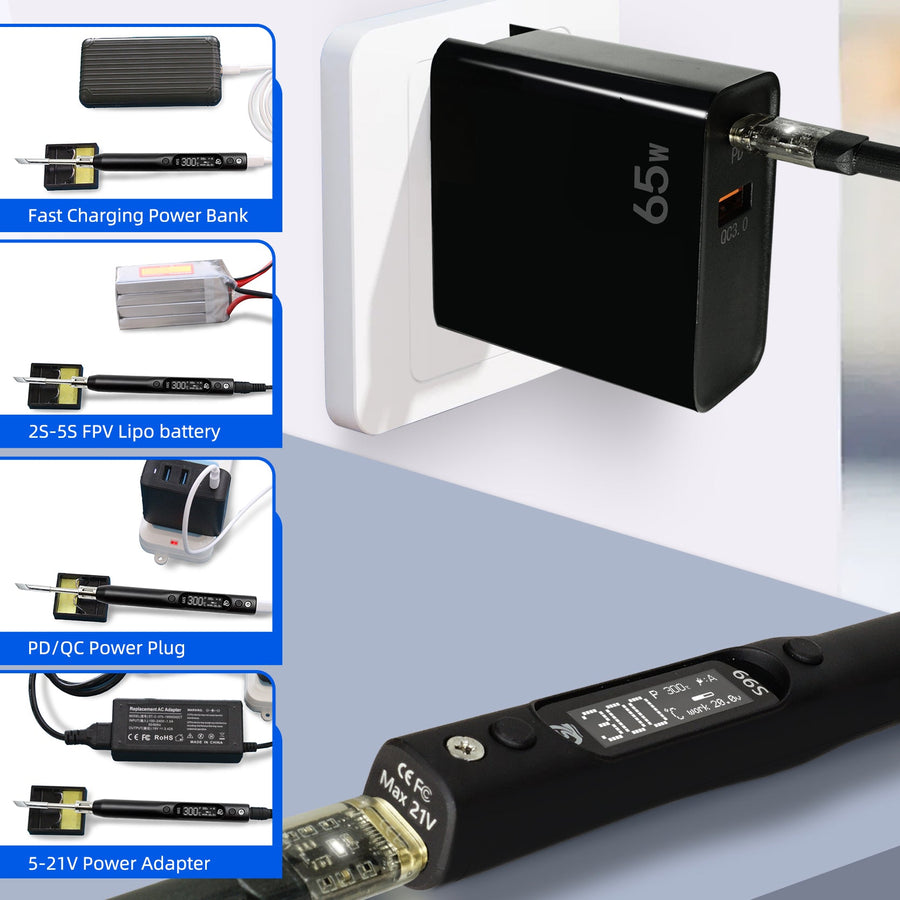

- Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.

- Intelligent temperature control algorithm, supports temperature compensation and temperature self-calibration.

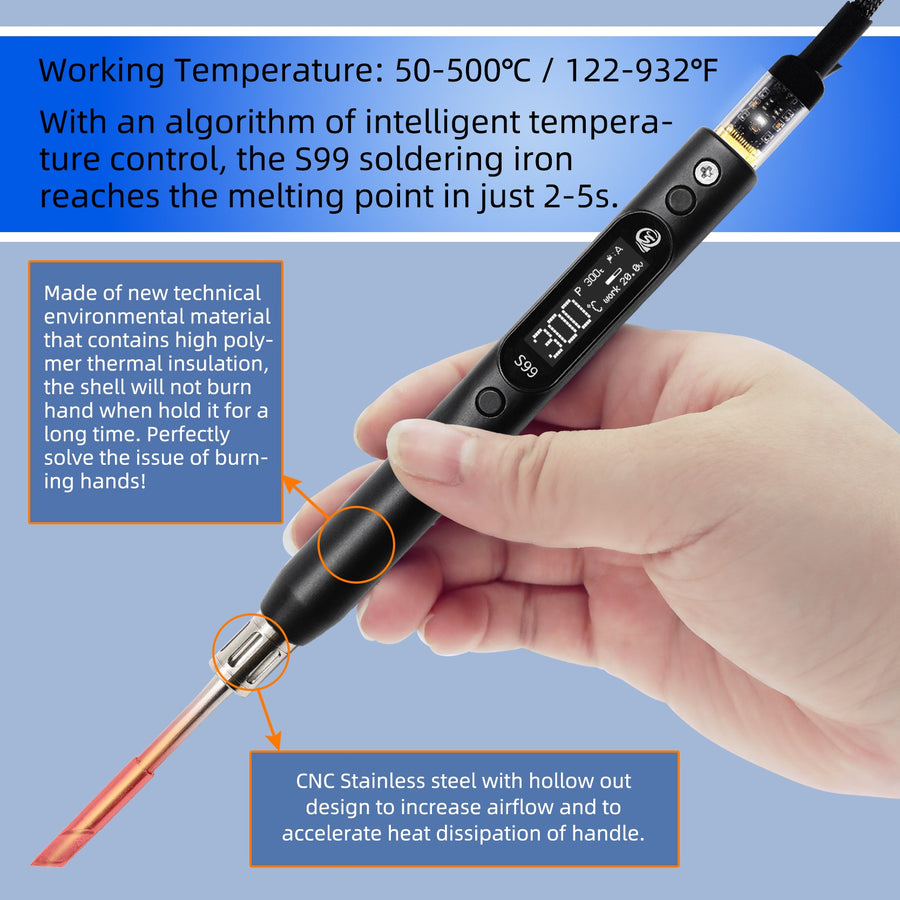

- The shell is made of industrial special materials, which is extremely resistant to high temperature and has effective anti-static treatment.

- 128*32 OLED display, built-in buzzer for work reminder.

- Sensitivity can be set to reject interference from environmental factors.

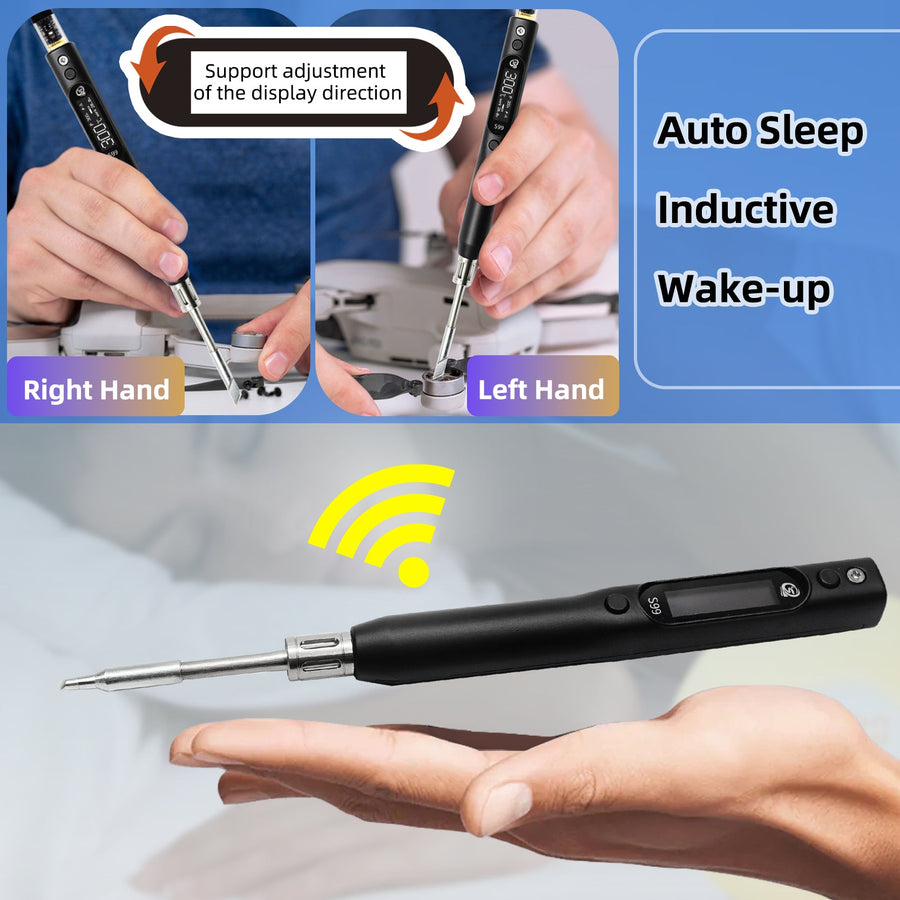

- Support ℃/℉ switch, left and right hand screen flip, firmware upgrade.

-Available in three languages: Chinese, English, and Russian

The resistance of the shipped soldering iron tip is about: 5.5 Ω

If you want to buy 2.5Ω soldering iron tip, you can purchase it through this link:

S20/S60/S60P/S99 parameter comparison

Model	S20	S60	S60P	S99
Maximum Voltage	9V	12V	21V	21V
Maximum Power	20W	60W	60W	150W(2.5Ω), 75W(5.5Ω)
Fastest Melting Tin Time	3s	2s	2s	2s(2.5Ω), 5s(5.5Ω)
Working Temperature	50-500℃	50-500℃	50-500℃	50-500℃
Screen Size	128*32 OLED	128*32 OLED	128*32 OLED	128*32 OLED
Interface Type	Type-C	Type-C	Type-C	Type-C
Power Supply	PD, QC, DC	PD, QC, DC	PD, QC, DC, PPS	PD, QC, DC, PPS
Protocol Selection	not support	not support	support	support
Host Size	116*13*15mm	118*13*15mm	118*13*15mm	124*13*15mm
Host Weight	22g	22g	22g	22g
Soldering Iron Tip Length	45mm	80mm	80mm	99mm
Soldering Iron Tip Weight	1g	2g	2g	5g
Host+Soldering Iron Tip Size	135*13*15mm	145*13*15mm	145*13*15mm	165*13*15mm

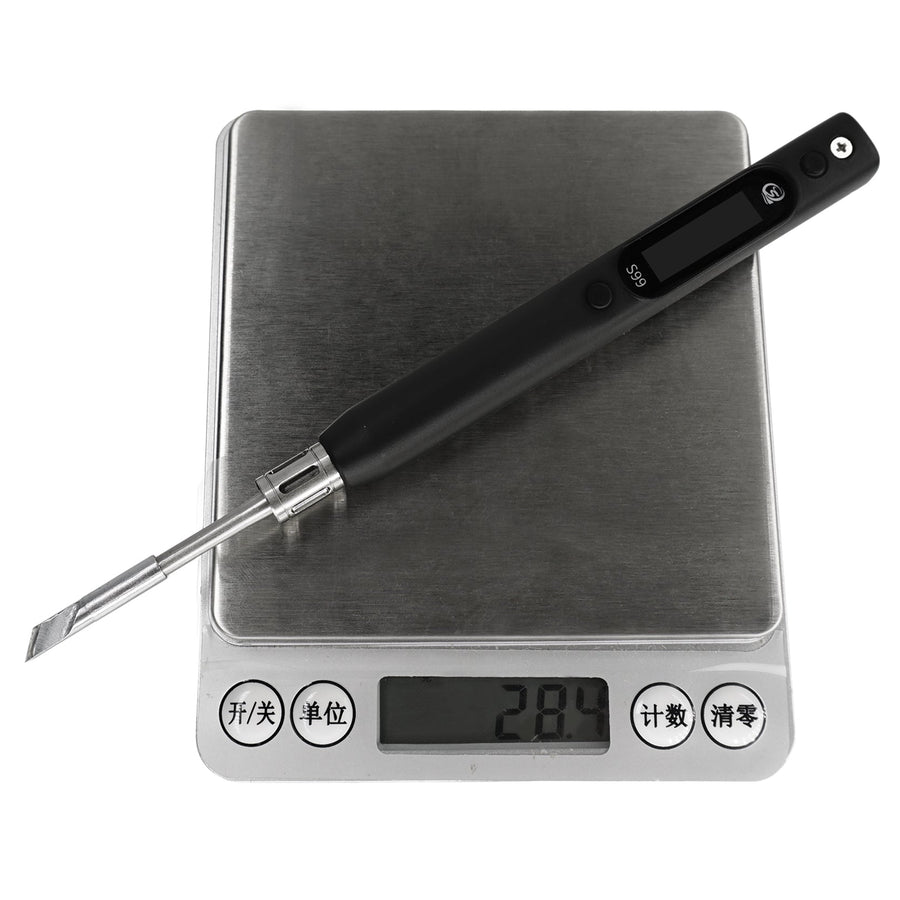

Host+Soldering Iron Tip Weight	23g	24g	24g	28g
Application	Nano welding, chip flying lead	Mobile computer repair	Mobile computer repair	Drone, RC model welding

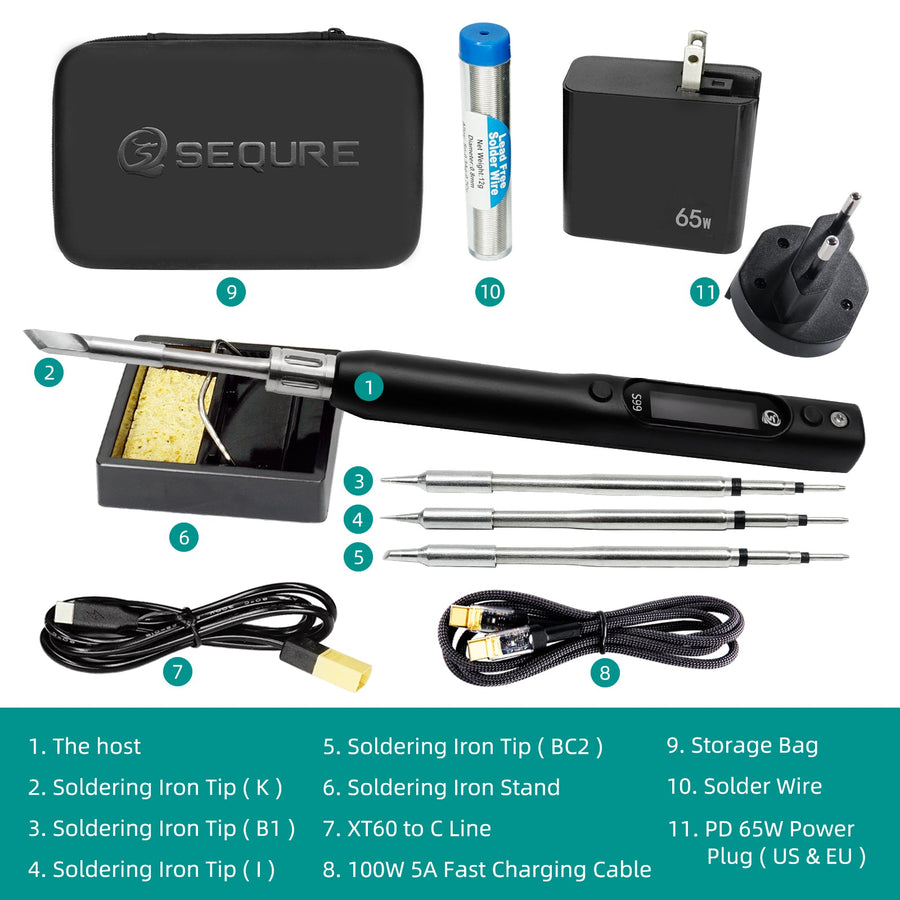

Package included:

• Host × 1

• Soldering iron tip × 1

Overall Dimension:

S99(K/I/B1/BC2)

• Product Size: 124*13*15mm

Net Weight Of Product: 22g

• Package Size: 125*35*23mm

Packing Weight: 44g

• Package Size (Including Outer Carton):205*115*40mm

Packing Weight (Including Outer Carton):85g

S99(K+I+B1+BC2)

• Product Size: 124*13*15mm

Net Weight Of Product: 22g

• Package Size: 125*50*25mm

Packing Weight: 76g

• Package Size (Including Outer Carton):205*115*40mm

Packing Weight (Including Outer Carton):117g

S99 Kit(K/I/B1/BC2)-(US+EU)/(US+AU)/(US+UK)

• Product Size: 124*13*15mm

Net Weight Of Product: 22g

• Package Size: 190*125*60mm

Packing Weight: 358g

• Package Size (Including Outer Carton):235*130*110mm

Packing Weight (Including Outer Carton):470g

S99 Kit(K+I+B1+BC2)-(US+EU)/(US+AU)/(US+UK)

• Product Size: 124*13*15mm

Net Weight Of Product: 22g

• Package Size: 190*125*60mm

Packing Weight: 390g

• Package Size (Including Outer Carton):235*130*110mm

Packing Weight (Including Outer Carton):500g
