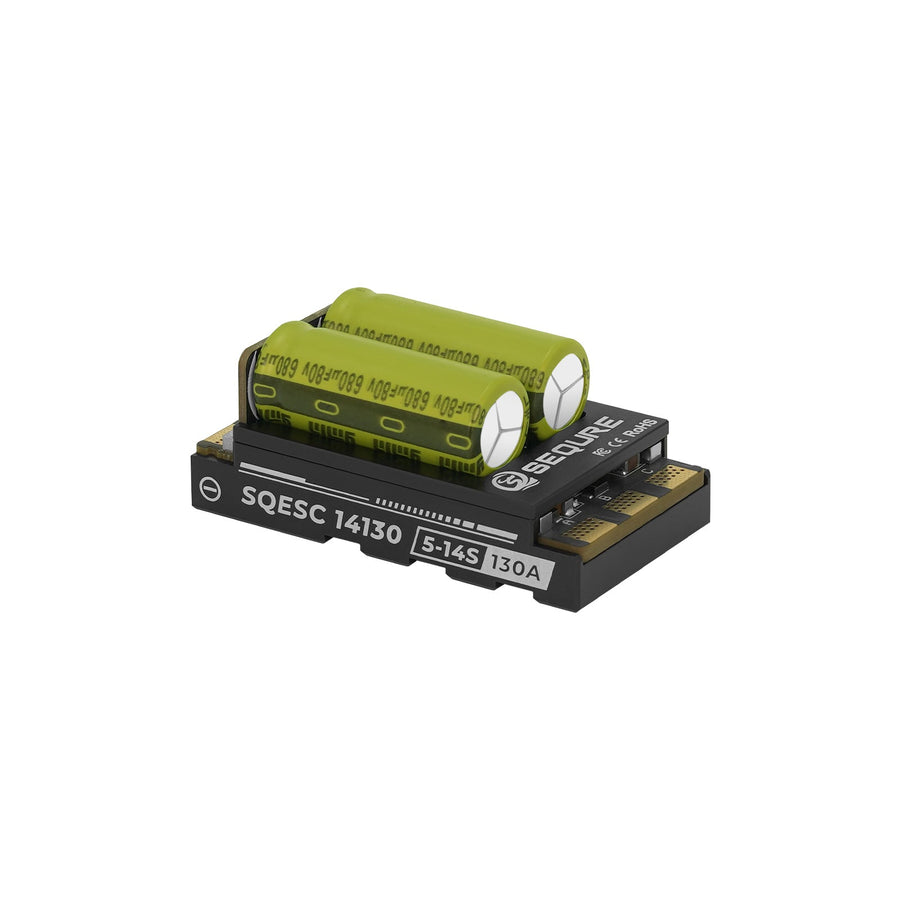

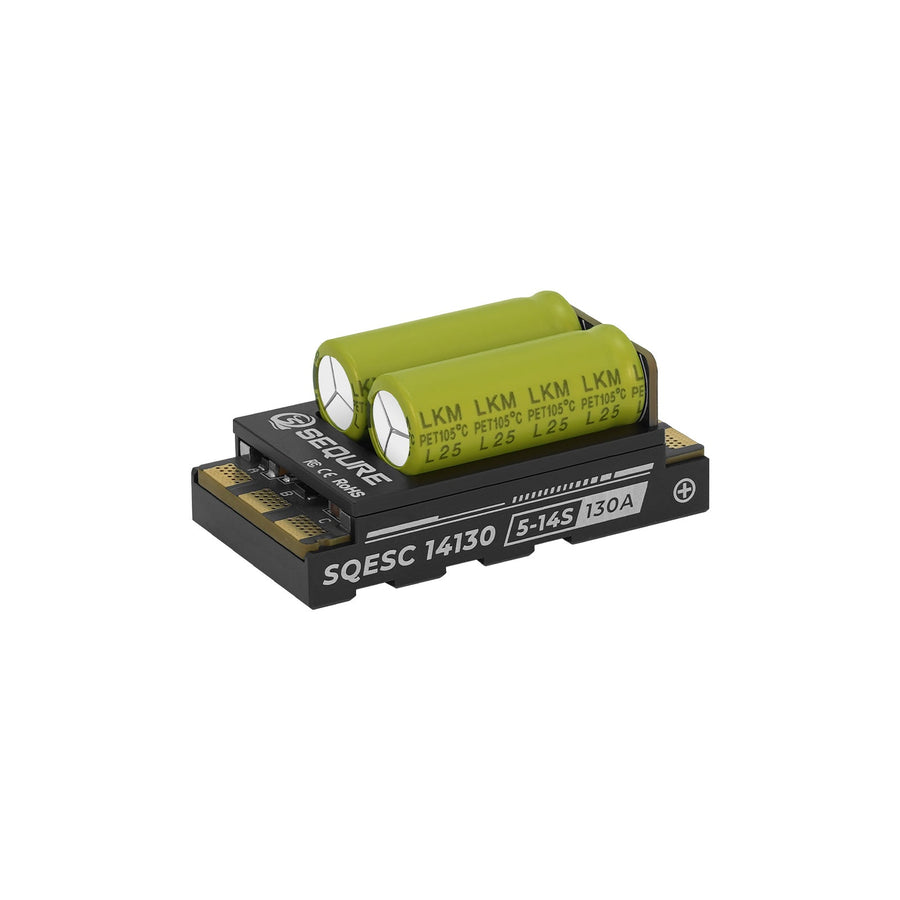

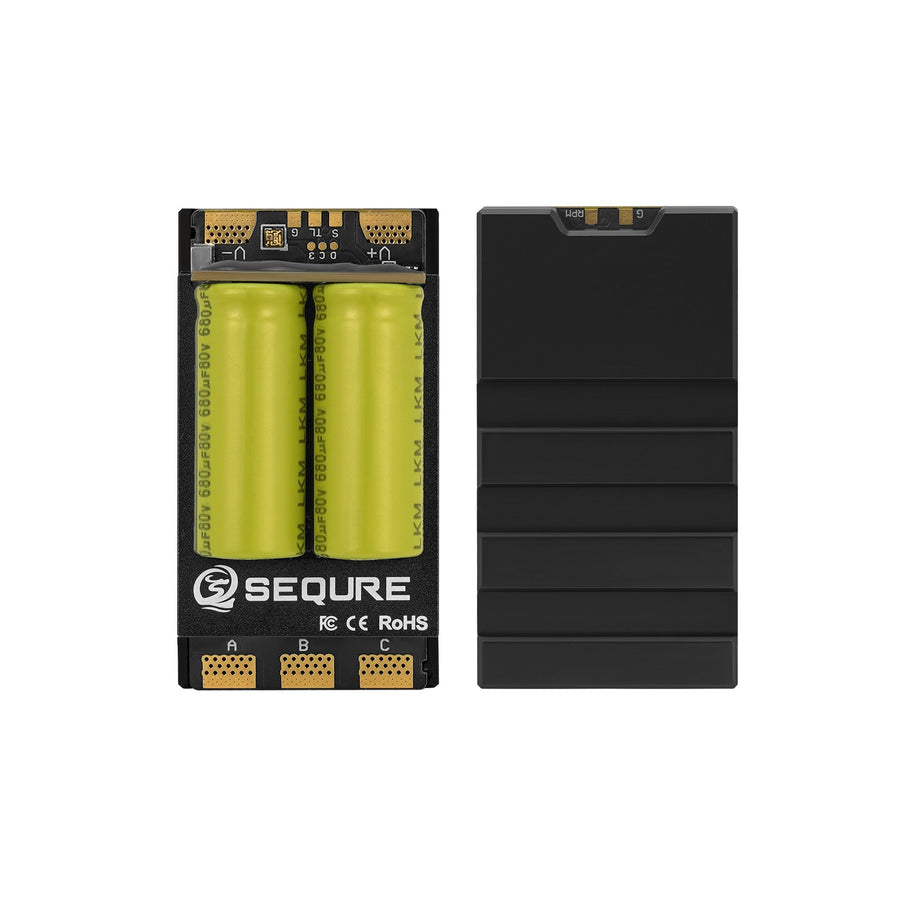

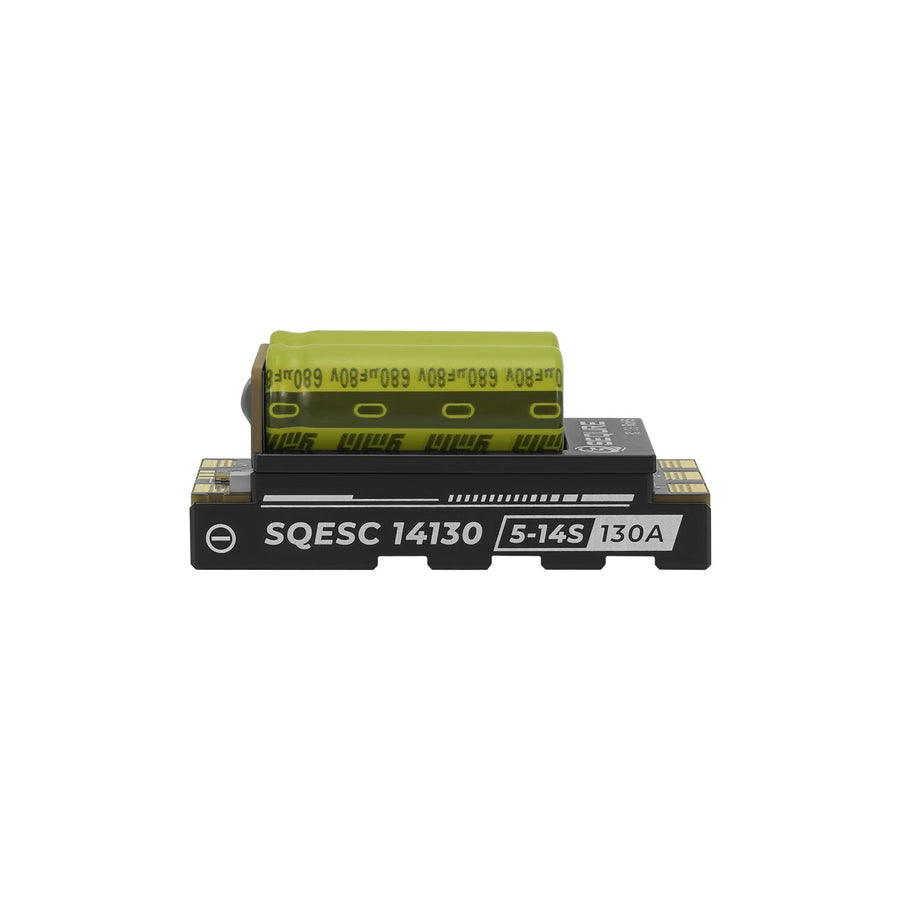

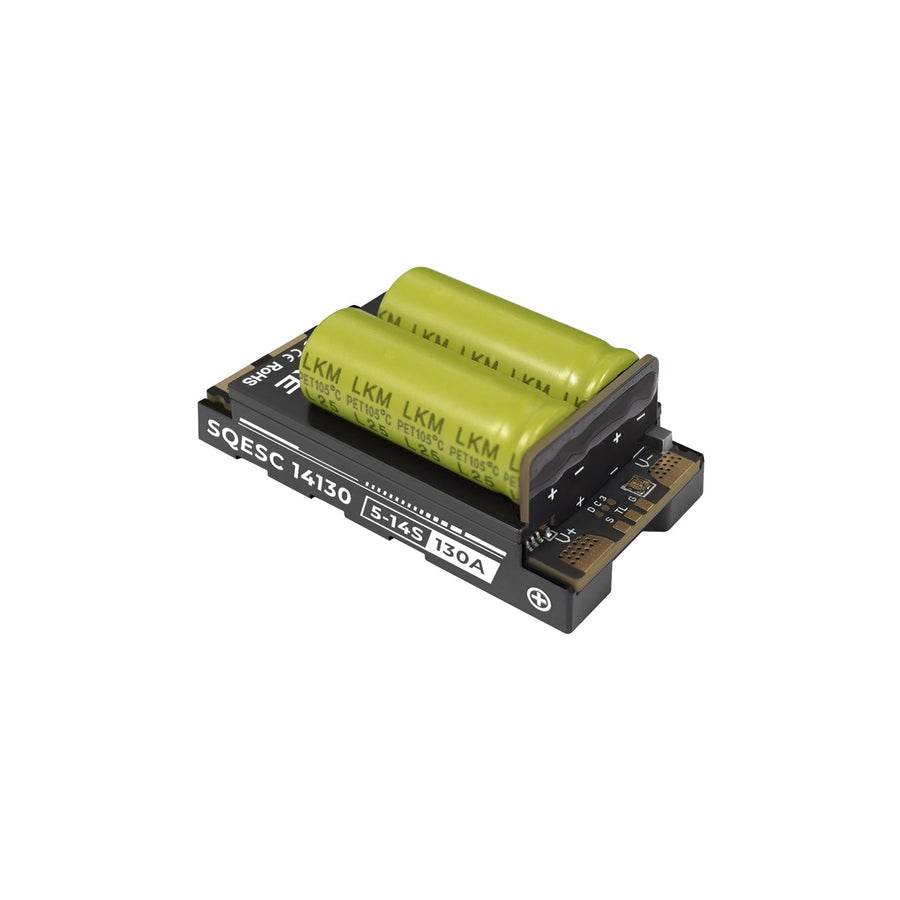

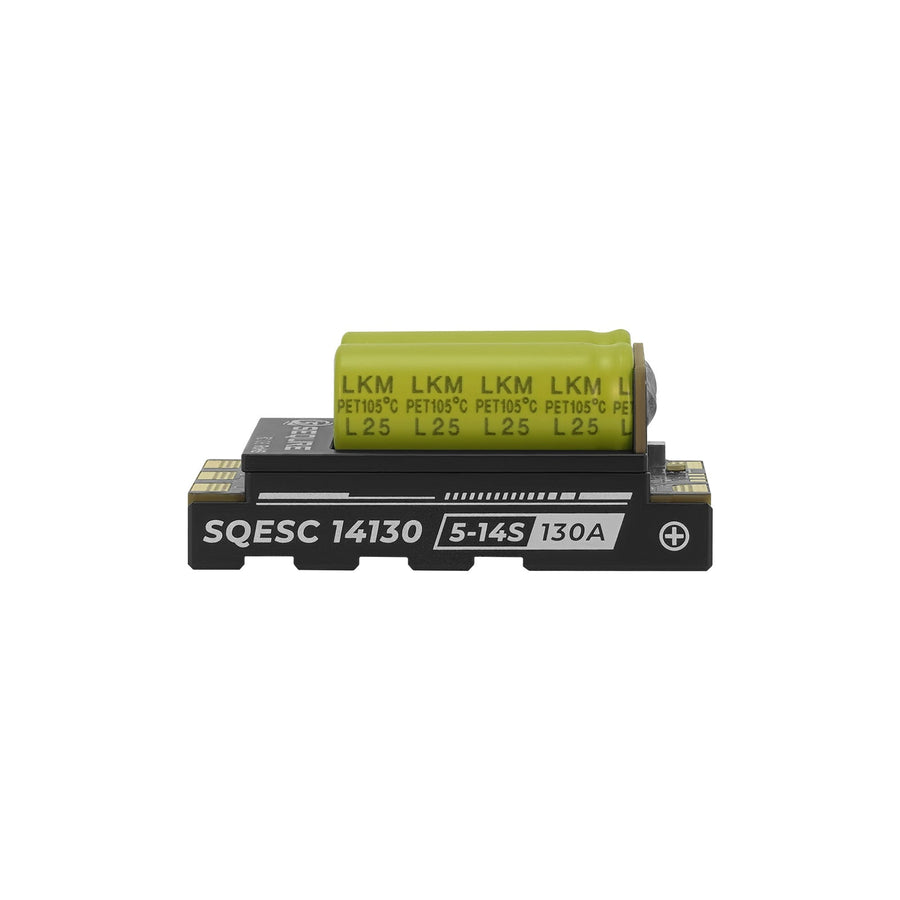

SQESC 14130 ESC 5-14S 130A

SQESC 14130 130A Single ESC Unboxing Video

If you need WiFi-Link/ESC-Link parameter configuration tool,

Product Description:
(1) Adopting 32-bit high-performance processor STM32G071.Supporting AM32/ESCape32/BLHeli_32 firmware.It can program multiple motion modes of a motor, like unidirectional, bidirectional, and brake.
(2) Equips with high-power MOSFET, and combines with metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(4) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(5) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(6) Onboard RGB LED color light settings, multiple LED colors can be customized.
(7) Widely used in multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc.

Parameters of Product:

Model Name	SQESC 14130
Processor	STM32G071
Input Voltage	DC 18V-59V(5-14S Lipo)
Continuous Current (Good Heat Dissipation)	130A
Maximum current (Good Heat Dissipation)	220A
Support Firmware	AM32, ESCape32, BLHeli_32
Signal Protocol	Dshot(All), PWM, Oneshot, Multishot, etc.
RPM Signal Line	AM32(YES), ESCape32(YES), BLHeli_32(NO)
Programming Parameter Adjustment	Support
Throttle Calibration	Support
Timing Angle Setting	Support
Current Detection	Support
Telemetry Signal	Support
Motor Steering Settings	Support
RGB LED Color Lights	Support
BEC	NO
Product Size	55*30*23mm(L*W*H)
Product Weight	61.5g
Application Scenarios	Multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc

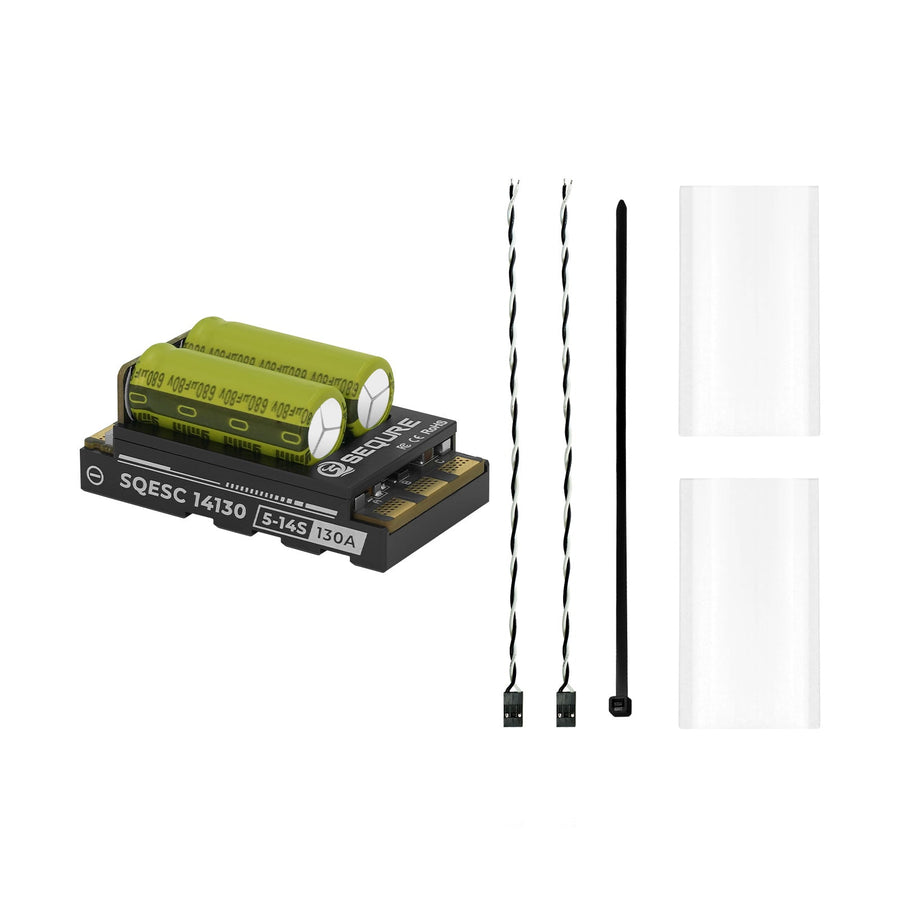

Package included:

14130(AM32)/14130(ESCape32)/ 14130(BLHeli_32),Optional
14130 ESC×1
300mm Twisted Pair Cable×2
30*90mm Transparent Heat Shrink Tubing×2
4*250mm Black Tie Straps×1

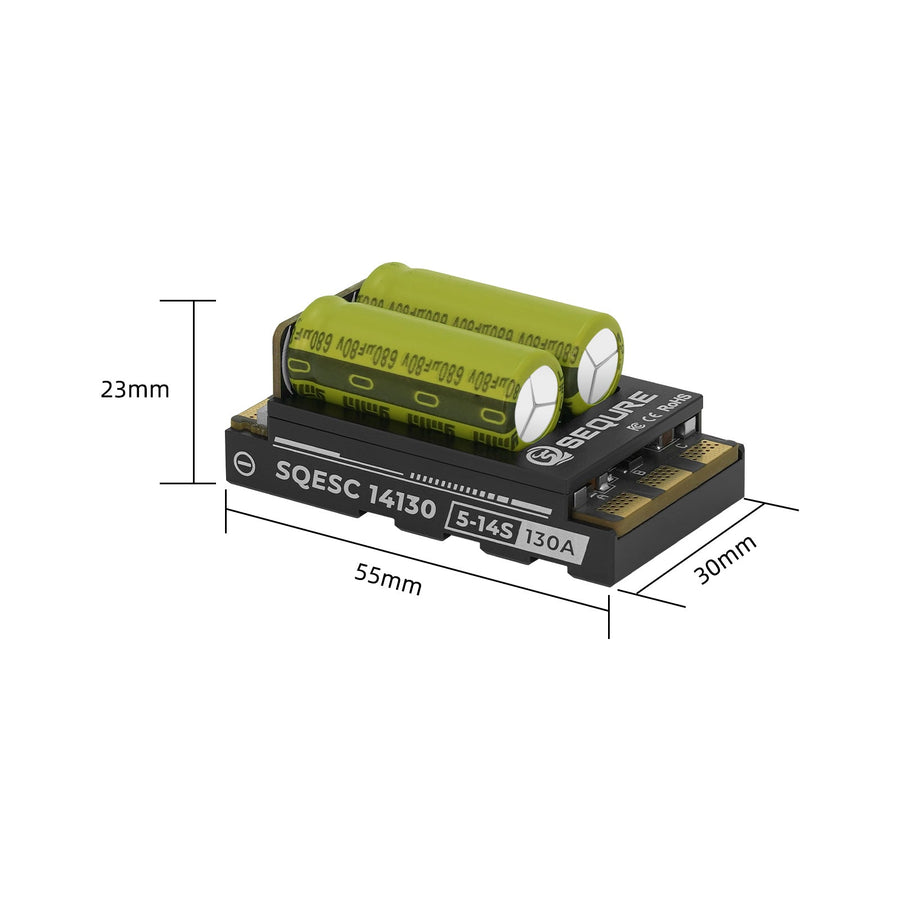

Overall Dimension

14130(AM32)/14130(ESCape32)/ 14130(BLHeli_32),Optional
(1)Product Size: 55*30*23mm
Net Weight Of Product: 61.5g
(2)Package Size: 150*100*35mm
Packing Weight: 80g
(3)Package Size (Including Outer Carton):155*105*50mm
Packing Weight (Including Outer Carton):130g
