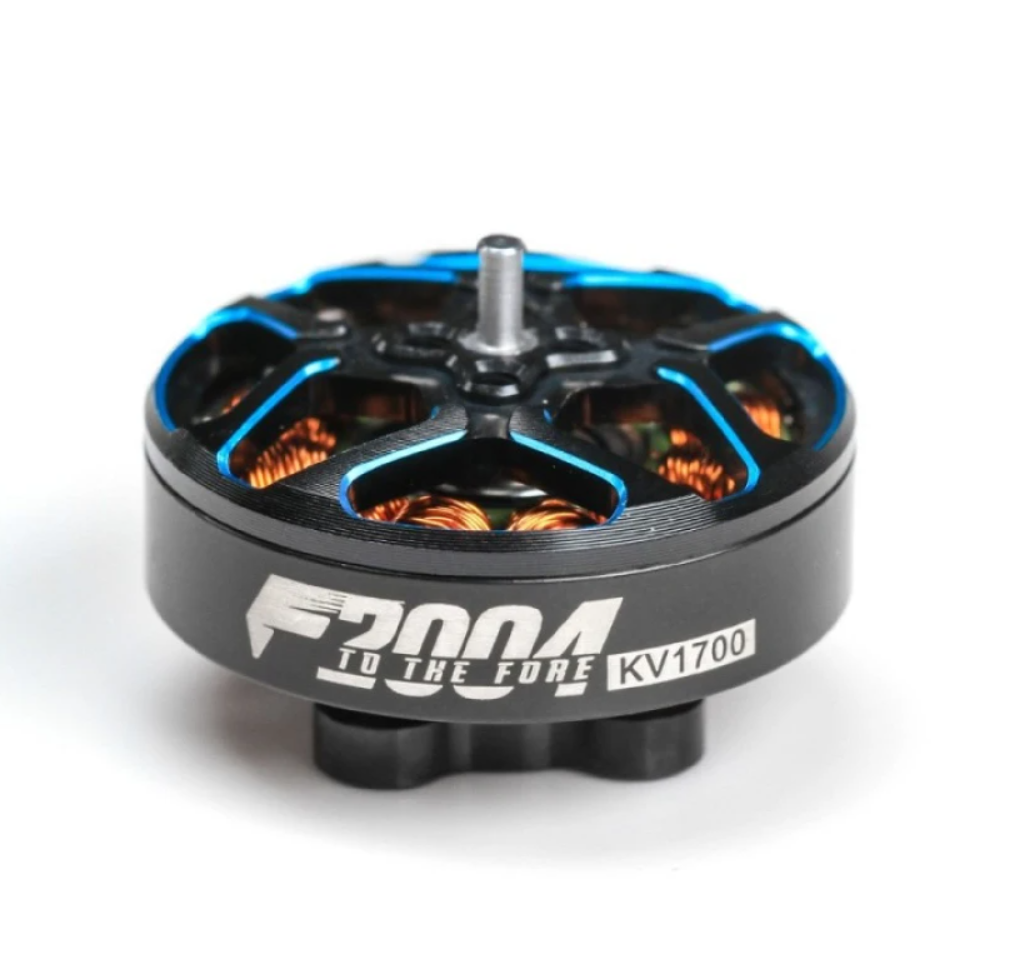

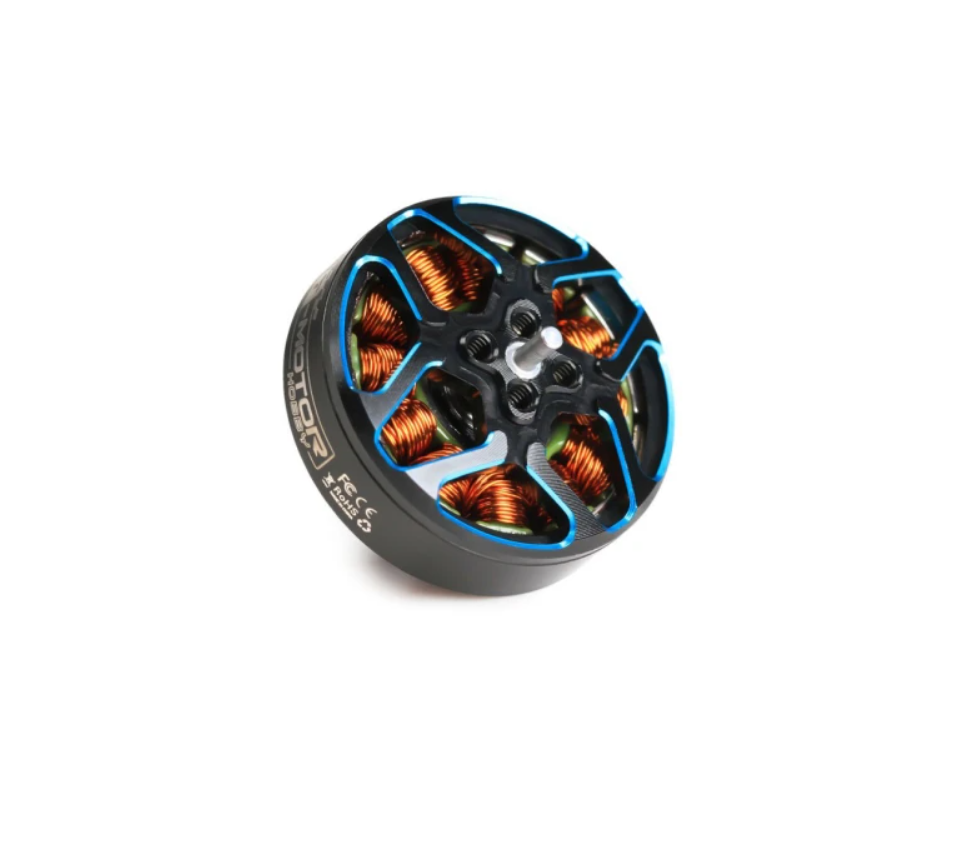

T-MOTORHOBBY F2004 racing/long range motor
Ships today if ordered by 2 PM PST
Built, bound and bench-flown in California before dispatch
30-day returns on unused items in original packaging · 12 months workmanship warranty
Get fpv long-range motor with the T-MOTORHOBBY F2004 1700KV/3000KV Motor! The F2004 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing drones, like 3 inch cinewhoops and 4-5 inch quad builds or ultralight drones!
1. 1700KV for 4-5" 6s ultralight drone
2. 3000KV for 3" cinewhoop, 4-5" toothpick/ultralight drone
3. T-Mount mounting, 1.5mm shaft
| Specification | Version KV1700 | Version KV3000 |
| Weight (Incl. Cable) | 16.4g | 16.4g |
| Motor Dimensions | Φ24.3*17.25mm | Φ24.3*17.25mm |
| Internal Resistance | 221mΩ | 90mΩ |
| Lead | 24#AWG 130mm | 24#AWG 130mm |
| Configuration | 12N14P | 12N14P |
| Shaft Diameter | 3mm | 3mm |
| Rated Voltage(Lipo) | 6S | 4-5S |
| Idle Current(10V) | 0.38A | 0.88A |
| Peak Current(60s) | 21.2A | 30.1A |
| Max. Power(60s) | 503W | 460W |
