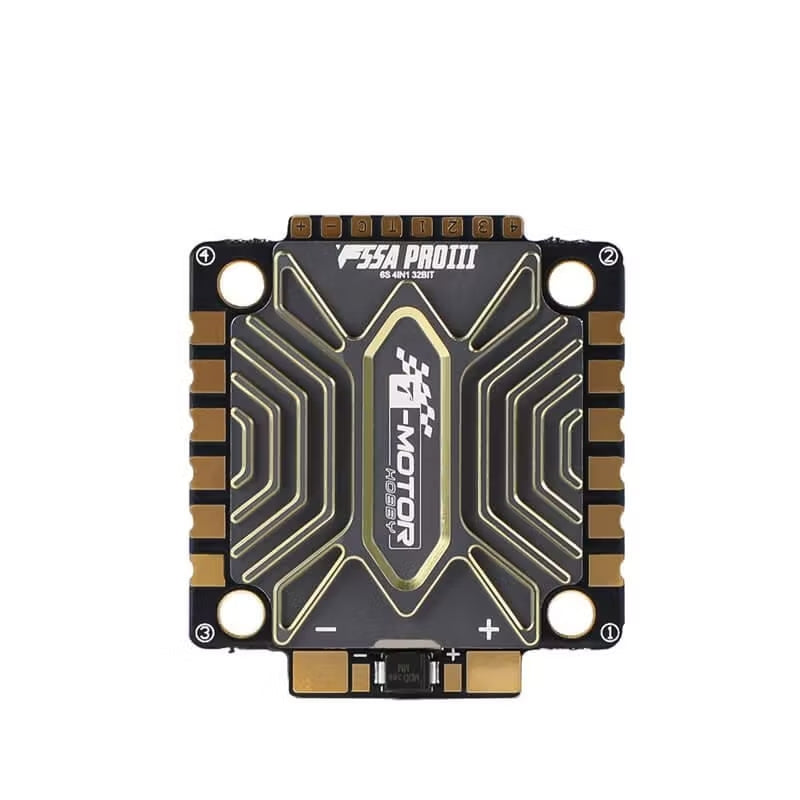

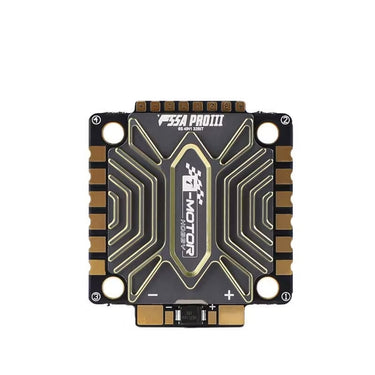

T-MOTORHOBBY F55A PRO Ⅲ 6-8S 4IN1 ESC

The upgraded F55A PROIII 4-in-1 ESC is a super ESC that features the TPHR8504 MOSFETs and is controlled by the STM32G071 microcontroller. Its stability is exceptionally high, surpassing that of previous ESCs and other products on the market.

It has added TVS protection to enhance its durability.and made with imported materials, ensuring its resilience during high-intensity flights.

It supports a wide PWM frequency range of 16-128kHz, allowing for better matching with motor parameters. The ESC also incorporates a brand-new dual oxygen dispersion heat sink design, ensuring more efficient heat dissipation and a stable power output.

Specifications:

Continuous current: 4*55A
AM 32
Telemetry:Support
Burst current: 4*65A
Size: 45x41x7.3mm
Weight: 17.8g (Including Heatsink)
Support DSHOT150/300/600/1200
Lipo: 3-8s
Mounting Hole:30.5*30.5mm/M3

1 Lower Heat Generation
2 TVS Protection
3 Dual Oxide Heat Sink Design:
4 Direct Plug-in F7 Pro FC
5 High Stability and Extended Lifespan
